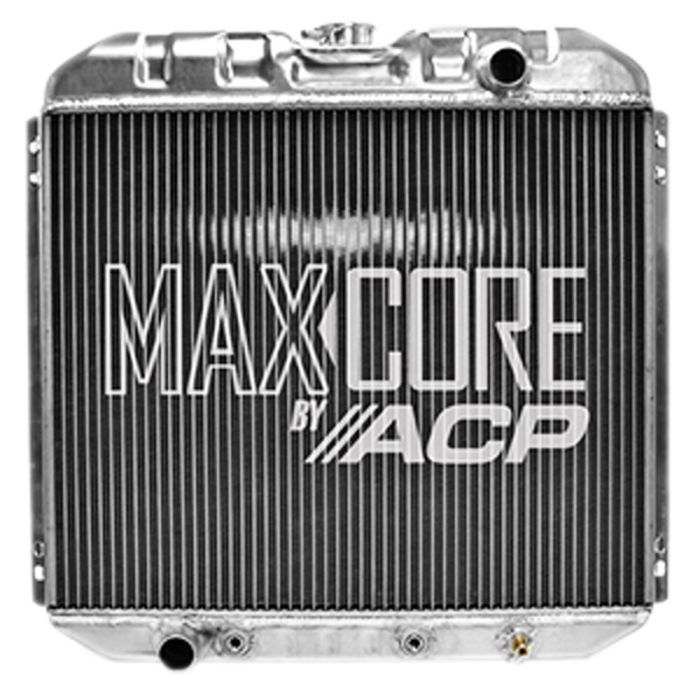

CJ Classics Radiator MaxCore Performance 2-Row Aluminum Type 340 OE-Style Mustang 6-Cylinder 1967-1968/ W/O A/C 6-Cylinder 1969-1970

CJ Classics constructs their MaxCore radiators from aluminum with two rows of 1-1/4” wide tubes that provide efficient cooling for your 6-cylinder Mustang. The upper and lower tanks of the radiator are styled after the original tanks and feature an OEM style brass petcock for easy draining.

An integrated transmission cooler is also included with the radiator for Mustangs with an automatic transmission. This MaxCore radiator uses the factory mounting points for installation and does not require any drilling or fabrication to fit.

Features and Benefits:
- Aluminum Construction
- Direct Fit OE Style
- Billet Filler Neck
- Integrated Transmission cooler for Automatic Transmissions
- OEM Style Brass Petcock for Easy Draining
- 2-Rows of 1-1/4” Tubes

The idea of creating a radiator from aluminum was based on using more tubes that were wider, and lowering the height of the fins. This would eliminate dead space between the tubes. The standard aluminum radiator tube width is 1”, so a typical 2-row aluminum radiator has a 2” tube-to-fin contact area per row.

Compared to the typical 4-row copper radiators which had a 1.7” tube-to-fin contact area. So CJ Classics decided to kick it up a notch by making the tubes in their 2-row MaxCore radiator 1-1/4” wide creating a 2-1/2” tube-to-fin contact area. Greatly exceeding the performance of a copper 4-row design.

Specifications:
Overall Dim (W x H x D): 20-1/2" x 21-3/8" x 3"
Core Size (W x H x D): 20" x 16-1/2" x 2-5/8"
Inlet Diameter: 1-1/4" Top Right
Outlet Diameter: 1-1/4" Bottom Left
Mounting Type + Width: Flange – 21-1/2"
Large Tube Size: 1-1/4"
Total Tubes: 49
Tube Spacing (Fin Height): 5/8"
Fins/Inch: 16
Transmission Cooler: Yes
Weight (lbs.): 13.5 lbs.

Please Note: This radiator is not for 1969-1970 6-cylinder Mustangs with air conditioning.
