Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966

CJ's Part Number: DBR157-V
MSRP: $1,661.12

CJ's Low Price: $1,595.00

1508716800 41637
Earn 1595 RPM Points What's this?
Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966
Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966 Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966 Play Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966 Video 1
Baer Brakes

Product Description

Baer Brakes 13" SS4 Plus Rear Disc Brake Conversion Kit for 1965-1966 Mustangs with a Small Bearing 8" or 9" Rearend.

A vehicle's production brake system is adequate for the average driver but if you drive your car harder than the manufacturer intended, you will over tax the system. When you pair your vehicle with the correct brake setup you will see better lap times at track day competitions and even short events such as auto-cross events. Baer has participated in every type of racing and performance activity. Baer is the brand most recognized among serious performance vehicle owners because they work better and deliver the best performance value.

Caliper Specs:
Type of Caliper - Two piece with four cross bolts for maximum stiffness
Number of Pistons - Four
Construction - High alloy forged billet aluminum

Rotor Specs:
Diameter - 13" two piece
Vented, Y/N - Y, Directionally curved vane
Standard Finish - Slotted, Drilled and Zinc Plated

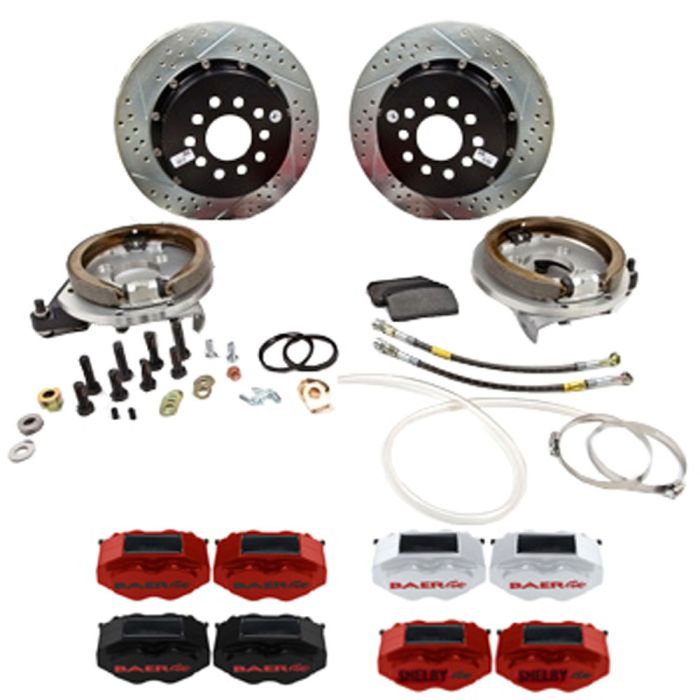

System Includes:
- Pair of two piece 13" diameter rotors
- Bearings, seals and studs pre-installed
- Dual seals (dust/weather and pressure) that meet D.O.T specifications
- Pair of Baer forged calipers
- Stainless steel pistons, abutments and noise suppression springs
- High Performance Baer DecelaPad Ceramic Brake Pads
- All necessary mounting brackets and hardware
- Stainless Steel Braided Hoses with vehicle specific fittings
- Parking brake assembly (drum-in-hat style) and cables
- Instructions

Multiple caliper finishes available.

Designed to fit under 17" or larger wheels. Check the "Installation Instructions" tab for a fitment template.

Similar Mustang Parts

similar Mustang parts More Restomod Brakes

Mustang Applications

This product will fit the following Mustang years:

Product Reviews

Write a review
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 120.09ms
  • bvseo-msg: HTTP status code of 404 was returned;

Product Questions

  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 149.36ms
  • bvseo-msg: HTTP status code of 404 was returned;

You Might Also Like

Product Video

Baer Brakes Rear Disc Brake Conversion Kit 13" SS4 Plus 8"/9" Small Bearing Rear 1965-1966 Video Transcript
By Bill Tumas: Bill: Hi. Bill and Josh here from CJ Pony Parts, with an update on our project 50-30. A short time back, we showed you this junkyard 8.8” rear. We’re going to be used as a basis for the rear in this build. We got the rear modified for our use. Josh can tell you a little bit about what we did to it.

Josh: First we took the stock 88, we cut the ends off, we narrowed it down to 50” overall, flange to flange. Welded the axle tube to the carrier, and we’re going to attach those with Baer Big Brakes on the ends.They have internal parking brakes. They’re 2-piece, 14” rotors, and 4-piston Billet calipers. The reason we’ve added the ends we have on this rear-end, is to eliminate the C-clip, so we’ll make the rear-end much, much, stronger and stop very quickly.

Bill: The powder coat on those calipers, is that a custom color, or is that offered on all of Baer’s calipers?

Josh: It is a Baer option that they do offer, but it is custom colors they offer.

Bill: Here we assembled the one side just to give you an idea of what the finished products going to look like. You can see the 2-piece rotor, the Baer caliper, and the parking brake is actually inside this hub, so it’s not visible at all when it’s installed.

Josh had mentioned we went to the big bearing ends, basically to get rid of the C-clips to make our rear stronger. We’ve done a few other things to also strengthen the rear as we go. The axle tubes have been welded to the center section here. That’s going to make sure the axle tubes don’t twist, so it’ll make the whole assembly stronger.

We also hit up Scott Drake for one of their Drake Muscle Car’s rear differential girdle. This has 2 bolts to go against the caps, again, to strengthen the whole rear-end assembly. We’re using Ford Racing’s 31 spline carrier, along with a set of Ford Racing 4.10 gears.

As you can see, we pretty much have everything needed to put the rear-end assembly together, except for the axles themselves. Because of the custom nature of this build, with a narrowed rear, we’re going to need a custom axle. Next time out, we’ll get the rear actually back in the car, and then we can measure for our axles. Recently though, we did pick up the Baer rear brakes, we also got some Baer front brakes. Josh is going to show you those.

Josh: Here you can see the massive, massive, Baer brake we put on this car. It’s a 14” rotor with a 6-piston calipers. The interesting point about that, is this car came factory at 14” wheels and we’re now running rotors the same size as the factory wheels. On this, we just threw this wheel we had sitting around on it. It’s a 19 by 9-1/2. We’re not going to run a wheel quite that big, but we jacked it up a little bit and compressed the air suspension so you could see the tire tuck up in and kind of get the full idea of what this car’s going to start to look like.

Bill: One of the other modifications we made since our last update on our project, was a set of custom wheel tubs for the back. We plan on running at least an 18 by 10” rear wheel on the back of this car, and to get enough space, the factory wheel tubs just weren’t going to cut it, so we narrowed the frame rail, and installed these tubs. As you can see, when they’re finished, they look pretty much factory.

Josh: With these wheel tubs, as Bill was telling you, we put them in to put a much larger tire. As you can see here, this is a 315. This is a massive tire to fit on the back of a ’65 Mustang, and that’s what the wheel tubs are designed for. We’re actually going to run, probably a 295, maybe a 305 on the car, because it is on air. We’re going to tuck them up nice, and we’re going to push this car pretty hard if we don’t have any rubbing issues when we’re taking her around the track.

As you can see, a 315 fits up in there, it doesn’t have any issues. We’re just in the mockup stage here, just showing you how this fits, but even with a 315, when we drop the suspension, I’ll pull this tire up. It fits in there and I can move it side-to-side a little bit, there is room. This car’s going to perform. Have a lot of sticky rubber on the back, and it should be a lot of fun when we get it on the road.

Bill: Our front suspension brakes is pretty much finish. As soon as we get a set of custom axles, we can get the rear done, get that in the car, and get that installed as well. At that point, the air ride goes in, and we should have a functioning air ride system. Make sure you subscribe to our YouTube channel for more updates on Project 50-30.
