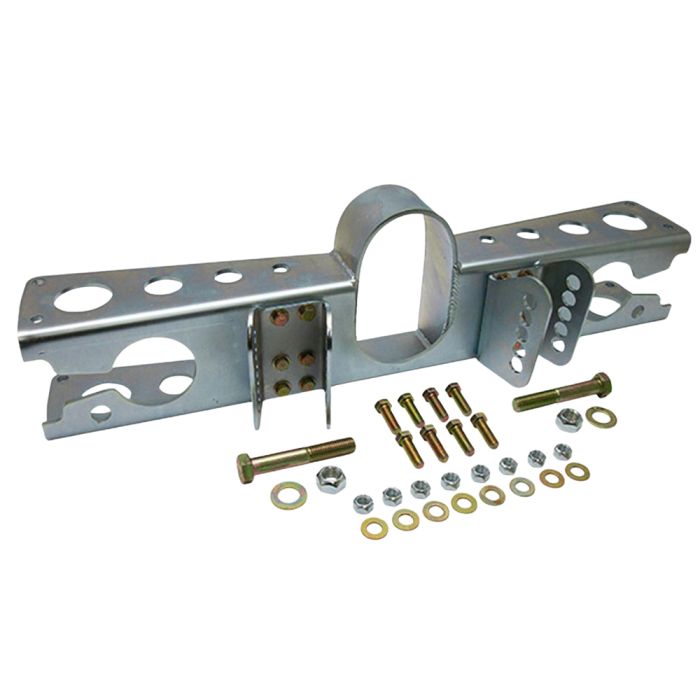

Brothers Trucks Dropped Trailing Arm Crossmember 2WD Chevy/ GMC 1/2-Ton 67-72 w/ Anti-Squat Brackets

Improve ground clearance and rear suspension adjustability on your lowered classic truck with the Brothers Trucks dropped trailing arm crossmember with anti-squat brackets. Designed for 1/2-ton 2WD trucks lowered 4" or more with trailing arm and coil spring rear suspension, its hoop-style design provides additional driveshaft clearance compared to the factory crossmember.

Features and Benefits:
- Fits select 1967-1972 Chevy and GMC 1/2-ton 2WD Trucks
- Designed for trucks lowered 4" or more
- For trailing arm/coil spring rear suspension
- Designed for Shortbed trucks with a 1-piece driveshaft
- Laser-cut from 3/16"-thick 1018-grade steel
- Hoop design increases driveshaft clearance on lowered trucks
- Bolt-on design mounts in the factory crossmember location
- Compatible with factory and aftermarket trailing arms
- Anti-squat brackets provide 5 trailing arm mounting positions
- Adjustable from the factory position up to 4 degrees of anti-squat
- Integrated passages accommodate up to 3" dual exhaust
- No welding required
- Includes Grade 8 mounting hardware

Laser-cut from 3/16"-thick 1018-grade steel, the crossmember features bolt-on anti-squat mounts with five trailing arm positions. The lowest position maintains the factory trailing arm geometry, while the additional settings provide adjustment up to 4 degrees of anti-squat for improved acceleration out of corners. Integrated exhaust passages accommodate up to 3" dual exhaust, and Grade 8 mounting hardware is included.

Vehicle Fitment:
- 1967-1972 Chevy C10
- 1963-1966 GMC C10
- 1967-1972 GMC C1500

Please Note: The crossmember is designed for Shortbed trucks with a 1-piece driveshaft; Longbed applications require modification to drill and mount the factory driveshaft carrier bearing.
