Centerforce Clutches DYAD DS Clutch/ Flywheel Kit 10.4” Twin Disc Mustang GT 1996-2004/ Cobra 1996-2001

Enhance the performance of your 1996-2004 Mustang GT or 1996-2001 Cobra with the Centerforce Clutches DYAD DS 10.4” Twin Disc Clutch and Flywheel Kit. This kit has been specially designed and engineered to hold between 500-1300 ft/lbs. of torque at the crank, all the while offering superior pedal comfort for ultimate driver control. Each component of this kit has been designed, machined, and assembled in the USA to ensure the highest possible quality. Centerforce Clutches DYAD DS clutches are match balanced and ready for installation upon arrival.

Features & Benefits:
- Holds 500-1300 ft/lbs. of Torque
- Organic Segmented Disc Facings
- Light and Smooth Pedal Effort
- 10.4” Diameter
- Weighs 45.95 lbs.
- 1-1/16” x 10-Spline Input Shaft
- 164-Tooth Gear for 8 Bolt Crank with 0oz Counterbalance
- Centrifugally Assisted
- Ball Bearing Design
- Quiet, Positive Drive Floater
- Precision Balanced
- ARP Fasteners
- Made in the USA

The included pressure plate utilizes a patented centrifugally assisted weight system to provide an improved clamp load over stock, combined with a patented ball bearing actuated pressure plate to retain a light pedal effort. Each disc is equipped with an organic segmented facing which increases holding capacity while the spring/dampened drive disc allows smooth drivability. A lightened billet steel flywheel provides low inertia, resulting in quicker RPMs.

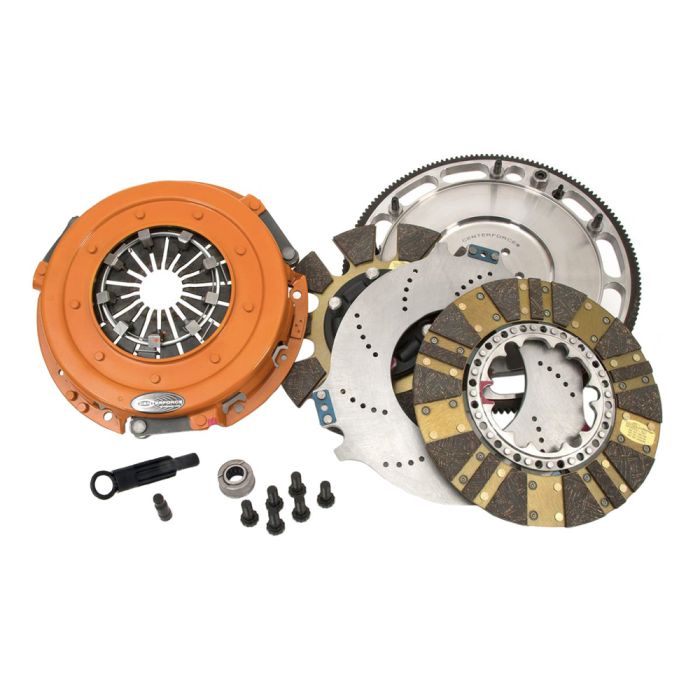

Kit Includes:
- Pressure Plate
- Discs and Floater
- Flywheel and Bolts
- Pilot Bearing
- Shim
- Alignment Tool
- Specification Card

Vehicle Fitment:
- 1996-2004 GT Mustangs
- 1996-2001 Cobra Mustangs

Tech Tip: A similar version of this Kit is also available for 1996-2010 GT Mustangs equipped with a 26-Spline Input Shaft. Please see P/N: CK459

Please Note: Vehicles may experience some floater noise during operation.
