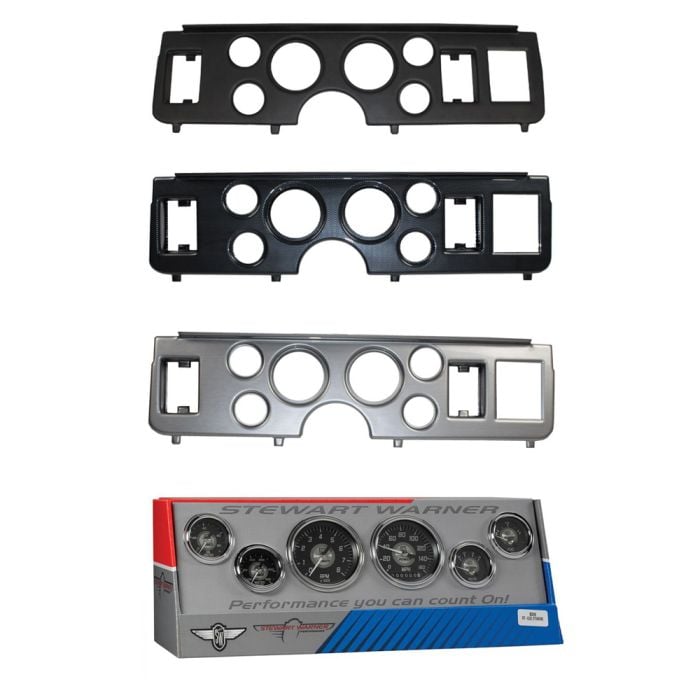

Classic Dash Instrument Bezel 6-Hole W/ Stewart-Warner Power Titanium Mechanical Gauge Kit Mustang 1979-1986

Breathe new life into your 1979-1986 Mustang’s dash panel with this Classic Dash 6-Hole Instrument Bezel with a Stewart-Warner Power Series 6-Gauge Kit! The gauges feature gorgeous black faces, titanium accents, and polished ring bezels for an elevated appearance. Constructed from UV-resistant ABS composite, the included instrument bezel is available in several finishes that complement the styling of the gauges. The speedometer, oil pressure, and water temperature gauges are mechanical, while the tachometer, fuel level, and voltage gauges are electric. Proudly made in the USA, this kit is complete with the necessary sending units for a proper readout.

Features and Benefits:
- Designed for 1979-1986 Mustangs
- Bezel available in several gorgeous finishes
- Power series gauges w/ titanium accents/black faces
- Instrument bezel made from UV-resistant ABS composite
- Mechanical speedometer, oil pressure, and water temp gauges
- Electric tachometer, fuel level, and voltage gauges
- Tach and speed measure 3-3/8”
- Oil, water, fuel, and voltage measure 2-1/16”
- Unique, racecar-inspired appearance
- Sending units included for proper readout
- Manufactured in the United States

Kit Includes:
- (1) 6-Hole Instrument Bezel
- Speedometer: 0 to 160 MPH
- Tachometer: 0 to 8,000 RPM
- Oil Pressure: 0 to 80 PSI
- Water Temperature: 100F to 265F
- Fuel Level: E to 1/2 to F
- Voltmeter: 10 to 16 VDC
- Fuel Level Sender Float Arm Ohms: 240-33.5

Tech Tip: 12V or 24V light kits are sold separately. These are available for 5/8-inch and 1/2-inch light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations.

Please Note: The brushed aluminum and carbon fiber options are both simulated finishes applied to the face of the instrument bezel.
