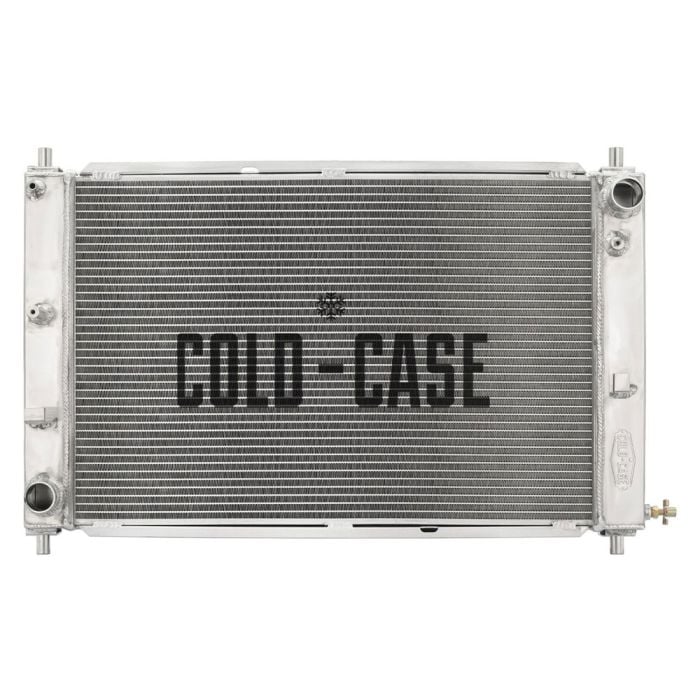

Cold Case Aluminum Performance Radiator Mustang Coyote Swap 97-04

Cooling a modern Coyote V8 in an older chassis takes more than the factory radiator can deliver. This Cold Case radiator is built for that swap, with a 100% TIG-welded aluminum core and tanks and an oversized 2-row core using two 1" tubes per row.

Corrugated fins at 16 per inch add surface area for heat transfer, each radiator is pressure tested, and factory-style transmission cooler fittings are built in for a manual transmission or an automatic with a separate cooler.

Features and Benefits:
- 100% TIG-welded aluminum construction
- Oversized 2-row core with (2) 1" tubes
- 16 corrugated fins per inch for heat transfer
- Pressure tested
- Factory-style transmission cooler fittings
- For manual transmissions or automatics with a separate cooler
- Core: 16.85" high x 25" wide; overall: 19.9" high (pin to pin) x 28" wide (stud to stud) x 3" thick
- 1.5" upper and lower hose connections

Vehicle Fitment:
- 1997-2004 Mustang with Coyote engine swap

Additional Notes:
- Does not include a fan shroud.
- This radiator is designed specifically for Coyote engine swaps, so verify your swap components, hose routing, and cooling system configuration before ordering.
