Dakota Digital 5-Gauge Set HDX Series With Black Alloy Style Face 1965-1966

Dakota Digital:


  • 30+ Selectable Color Options
  • Built-In Illumination
  • Easy Set-Up/Troubleshooting
  • Wiring Required
MSRP $1,295.00
You save $64.75

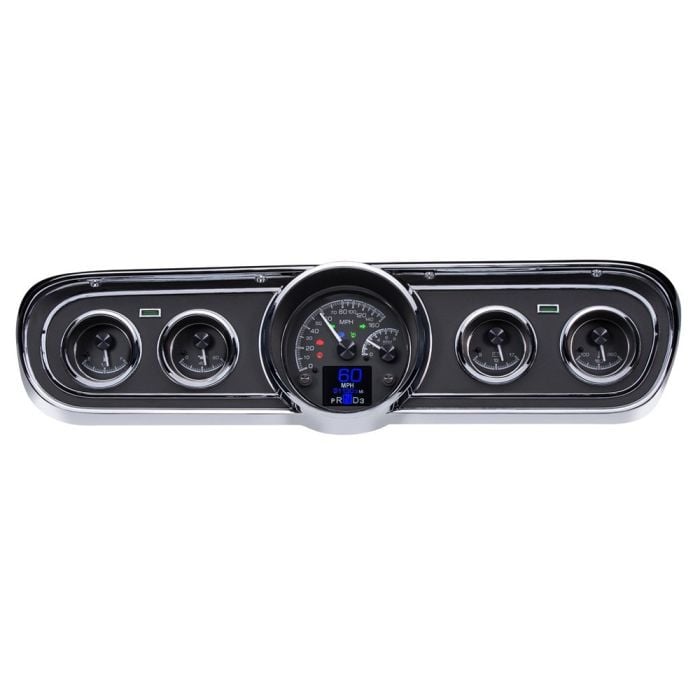

Set of Dakota Digital HDX Series Gauges with Black Alloy Style Faces for 1965-1966 Mustangs.

Bring the gauges and instrumentation in your classic 1965-1966 Mustang into the modern age while maintaining the mid-60s era styling with this Set of Dakota Digital HDX-65F-MUS-K HDX Series Gauges with Black Alloy Style Faces. To add a touch of customization to your new HDX series gauges you can select independent illumination colors for the gauge readings, needles and message center.

Features and Benefits:
- Highly visible LCD message center
- User-customized display feedback
- Works with OEM or aftermarket sensors
- Easy set-up and troubleshooting
- Built-in illumination
- Over 30 user-selectable color options

All HDX Series Instrument Systems include LED-lit on-board capacitive touch push-buttons through the gauge face. Whether you’re in driving mode or in the setup menu, these push-buttons provide quick and consistent access to all functions. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Based upon seating position, remote mounted switches can be connected to the HDX system. Suitable for Android and Apple devices, the HDX Series can also be completely configured through the Bluetooth application. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system and enjoy quick and convenient menu navigation and real time gauge readouts.

Behind the scenes features include a micro-controlled precision stepper motor and laboratory-grade, solid state sensors that produce incredibly efficient readings. These sensors are utilized for water temperature, oil pressure and the speedometer pulse generator. Fully programmable for various tire sizes, rear-end gearing and more, the speedometer flips your mechanical speedometer cable to digital. The water temperature and oil pressure sensors have 1/8" NPT sensors along with bushings to adapt to 1/4", 3/8" and 1/2" NPT. The other displays will work with either your OEM or aftermarket sensors. To match the buttons, the needle hub is black nickel plated spun-aluminum. Featuring dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge, this set will add a truly unique look to your pony's dash.

Digital Gauge Displays Include:
- Speedometer – 0 - 160 MPH
- Tachometer – 0 -8,000 RPM
- Water Temperature – 100F – 260F
- Oil Pressure - 0-80 psi
- Fuel Level – E. 1/4, 1/2, 3/4, F
- Voltmeter - 9-17 VDC

Gauge Indicators Include:
- Turn Signals  (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/Off for cruise control equipped vehicles)|
- Gear Position (Optional sensor required)

Sensors Included:
- Water Temperature
- Oil Pressure
- Speed Sensor

Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual A/B Trip Meter (0-9,999.9)
- Clock (12 hour)
- Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color

Performance Meters:
- 0- 60 MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Please Note: The Dakota Digital Gear Shift Indicator Sending Unit (P/N: GSS2000) is sold separately and is needed for gear position indicator function. This set does not include instrument bezel, (P/N: IB3) must be purchased separately.

Dakota Digital manufactures restoration and replacement style gauges and gauge pods for early model Mustangs that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Set of Dakota Digital HDX-65F-MUS-K HDX Series Gauges with Black Alloy Style Faces for your 1965 or 1966 Mustang today from CJ Pony Parts.

California Residents: Proposition 65 Warning

Installation Difficulty


Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
