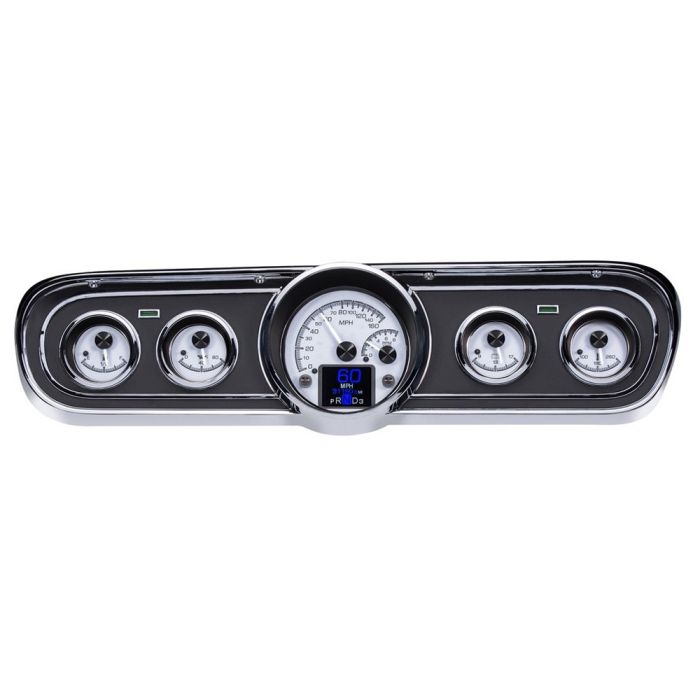

Dakota Digital 5-Gauge Set HDX Series With Silver Alloy Style Face Mustang 1965-1966

Add modern function to your in-dash instrumentation without damaging the classic interior style of your 1965-1966 Mustang by installing this Set of Dakota Digital HDX-65F-MUS-S HDX Series Gauges with Silver Alloy Style Faces. These HDX Series gauges allow you to select independent illumination colors for the gauge readings, needles and message center for a personally customized look.

Features and Benefits:
- Highly visible LCD message center
- User-customized display feedback
- Works with OEM or aftermarket sensors
- Easy set-up and troubleshooting
- Built-in illumination
- Over 30 user-selectable color options

Through the gauge face, all HDX Series Instrument Systems include LED-lit on-board capacitive touch push-buttons. These push-buttons provide quick and consistent access to all functions, whether you’re in driving mode or while in the setup menu. Button-press feedback is available through the included buzzer or through the TFT Message Center. Remote mounted switches can be connected to the HDX system if this proves more accessible based around seating position. Suitable for Android and Apple devices, the HDX Series can also be completely configured through the Bluetooth app for Android or Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system and enjoy quick and convenient menu navigation and real time gauge readouts.

Additionally, a micro-controlled precision stepper motor is included as well as, laboratory-grade, solid state sensors that produce incredibly efficient readings. These sensors are primarily for water temperature, oil pressure and the speedometer pulse generator. The speedometer flips your mechanical speedometer cable to digital and is fully programmable for various tire sizes, rear-end gearing and more. The water temperature and oil pressure sensors have 1/8" NPT sensors along with bushings to adapt to 1/4", 3/8" and 1/2" NPT. The other displays will work equally well with your OEM or aftermarket sensors. The needle hub is black nickel plated spun-aluminum to match the buttons. This set features dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.

Digital Gauge Displays Include:
- Speedometer – 0 - 160 MPH
- Tachometer – 0 -8,000 RPM
- Water Temperature – 100F – 260F
- Oil Pressure - 0-80 psi
- Fuel Level – E. 1/4, 1/2, 3/4, F
- Voltmeter - 9-17 VDC

Gauge Indicators Include:
- Turn Signals  (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/Off for cruise control equipped vehicles)|
- Gear Position (Optional sensor required)

Sensors Included:
- Water Temperature
- Oil Pressure
- Speed Sensor

Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual A/B Trip Meter (0-9,999.9)
- Clock (12 hour)
- Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Performance Meters:
- 0- 60 MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Please Note: The Dakota Digital Gear Shift Indicator Sending Unit (P/N: GSS2000) is sold separately and is needed for gear position indicator function. This set does not include instrument bezel, (P/N: IB3) must be purchased separately.

Dakota Digital manufactures restoration and replacement style gauges and gauge pods for early model Mustangs that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Set of Dakota Digital HDX-65F-MUS-S HDX Series Gauges with Silver Alloy Style Faces for your 1965 or 1966 Mustang today from CJ Pony Parts.
