Dakota Digital Instrument Gauge System RTX Mustang 1967-1968

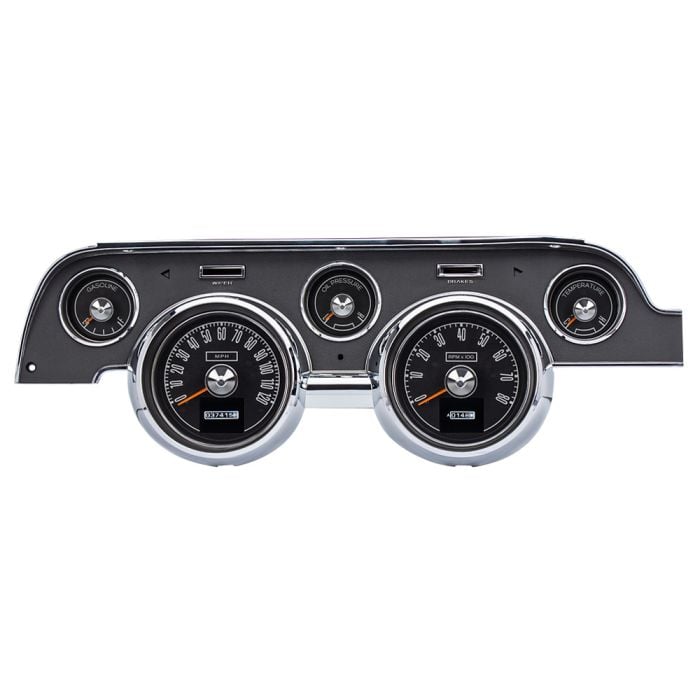

Stay true to the beloved stock look inside your 1967-1968 Mustang while enjoying modern features like LED backlighting, custom color zones, and adjustable brightness. The Dakota Digital RTX Instrument Gauge System (RTX-67F-MUS-X) bolts right in place using your stock or reproduction bezel so you can begin accessing these features right away. The outcome is a showroom look with sly late-model electronics located inside the CNC-machined housings.

Features and Benefits:
- Free Mobile App Available on Android and Apple Devices
- Each Package Includes Two-Sided Rocker Switch
- Calibration Settings Managed Via Pushbutton Switch or App
- Includes Analog Gauges
- Control Box Dimensions: 5.5" x 3.5"x 1"
- Full RBG LED Backlighting
- Twelve Factory Preset Color Themes with Ability to Customize Color Zones
- Adjust Daytime and Nighttime Brightness through HDX Setup Menu
- Bolts into Stock or Reproduction Bezel
- Strict Factory Design Elements with Functional Modern Upgrades
- CNC-Machined Housings
- High-Definition TFT Message Centers

The gauges are easy to read, day or night, and can be adjusted so the activation of your headlights triggers a daytime/nighttime theme. Likewise, you can browse over 30 selectable color options to independently change needle color, sweep color, and digital TFT display color in your classic Mustang. Simply download the free mobile app on your device or use the included pushbutton switch to manage these features.

Kit Includes:
- Speedometer Gauge: 0-120 MPH (optional metric version 0- 200 kmh)
- Tachometer Gauge: 0-8,000 RPM
- Oil Pressure Gauge: 0-80 psi
- Water Temperature Gauge: 100-260ºF (optional metric version 40- 120ºC)
- Fuel Level Gauge: E, 1/4, 1/2, 3/4, F
- Voltmeter Gauge: 9- 17 VDC
- Built-in Indicators
- Water Temperature Sensor: 1/8" NPT, Ground Isolated Sensor with a 10-ft Harness
- Oil Pressure Sensor: 1/8" NPT Solid State Sensor with a 10-ft Harness
- Cable Driven Speed Sensor/Generator
- 1/8" to 1/4", 3/8" and 1/2" NPT Bushings and Bushings for 12mm and 16mm x 1.5 Threads

Tech Tips:
- If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
- Not all OEM indicator lamp functions will be replaced. If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
- Cable Driven Speed Sensor/Generator replaces Ford and/or GM-style speedometer cables with a 10-ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. P/N: 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Please Note: Bezel not included; shown for visual/presentation purposes. The system will require the use of your OEM or reproduction-style bezel.
