Diode Dynamics Fog Light Kit Elite Series Mustang EcoBoost/ GT 15-17/ V6 16-17 White

Don't let foggy weather obscure your vision and impact your safety. Upgrade to a Diode Dynamics White Elite Series Fog Light Kit (DD5128P) so you're always ready for what nature throws your way. These OE-style Fog Lamps offer a plug-and-play fit with true performance capabilities that are suitable for 2015-2017 EcoBoost and GT Mustangs and 2016-2017 V6 Mustangs.

Features and Benefits:
- High-Performance OEM-Grade Replacement
- Custom-Engineered Optic
- Ultra-Wide, Intense Light Output
- True Cool White Output with 6000K Color Temperature
- White Output Matches Factory LEDs Like DRLs or Running Lights
- Distinctive Integrated Amber Backlight
- Road-Legal Fog Light (SAE F3 Compliant)
- Plug-and-Play Main Beam; No Modifications Required
- Engineered and Assembled in the USA

The Elite Series Fog Lights are equipped with industry-leading technology such as high-power full-copper circuit boards, multi-die automotive emitters, and a custom-engineered patent-pending optic. As a result, the Elite Series Fog Lights produce a bright output that's five times greater than halogen lamps.

Specifications:
- Measured Lumens: White: 1,850 lm
- Intensity (cd): White: 10,200 cd
- Color Temp (CCT): 6000K
- Beam Angle: Fog, 80°x6°
- Power (Watts): Main Beam White: 17, Backlight: 0.3
- Operating Voltage: 9-16V
- Current (Amps @ 13.2V): Main Beam White: 1.3, Backlight: 0.025
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Multi-Die Automotive Emitters
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
- Cooling: Passive, Pin-Fin Heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP68 Waterproof

Diode Dynamics used optical simulation software to develop a single-piece PMMA lens, the centerpiece of the Elite Series Fog Light Kit. The optic produces an 80-degree spread of ultra-intense light, making it the widest fog lamp light pattern on the market today. Despite its sheer breadth, though, the Elite Series remains smooth throughout and features a sharp cutoff to prevent glare from reaching other drivers' lines of vision.

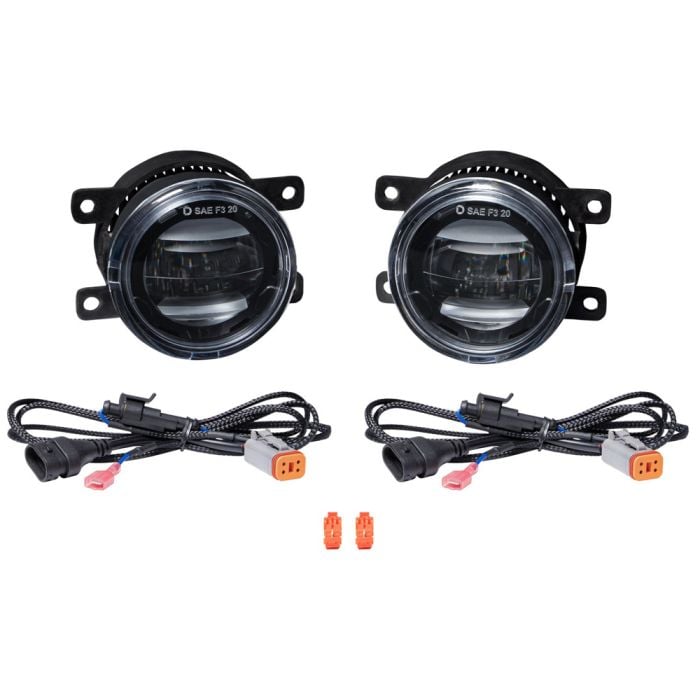

Kit Includes:
- Two (2) Elite Series Type-A White Fog Lamps
- Two (2) H11 4-Pin DT Backlight Tap Wires
- Two (2) T-Taps
- Mounting Guide

Vehicle Fitment:
- 2016-2017 V6 Premium Mustangs
- 2015-2017 EcoBoost Mustangs
- 2015-2017 GT Mustangs

Tech Tip: The backlight can be wired to any constant 12-volt source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated.

Please Note: This kit does not include any additional wiring and/or switches that would be necessary to upgrade a 2015 V6, 2016-2017 Base Model V6, GT350, or GT350R models that were not originally equipped with factory fog lights.
