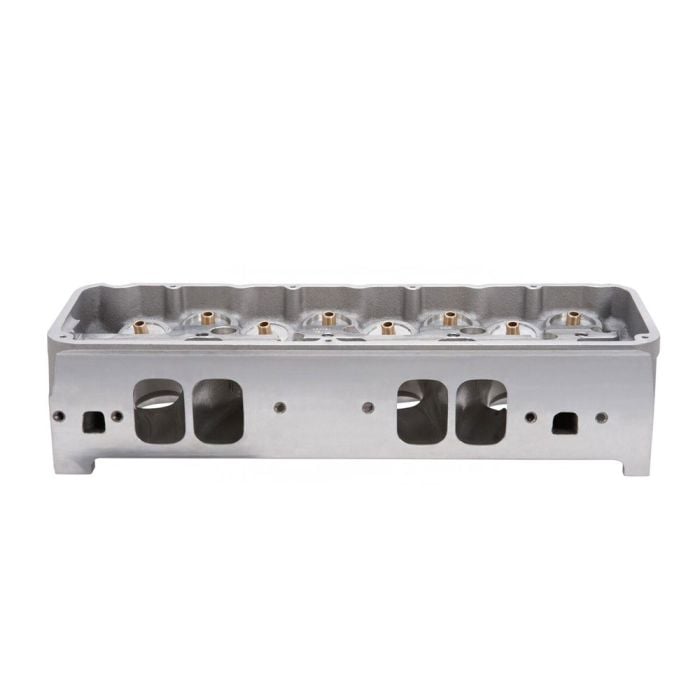

Edelbrock Victor CNC DR-17 Cylinder Heads 120CC Big-Block Chevy Engines

Designed for serious naturally aspirated big block Chevy combinations, the Edelbrock Victor CNC DR-17-cylinder heads deliver the airflow and efficiency required for maximum horsepower and torque. Featuring large 120cc combustion chambers, these heads are engineered for large-displacement pump-gas engines using a true flat-top piston configuration. The combination of raised intake and exhaust ports, revised spark plug location, optimized valve placement, and a 17-degree valve angle promotes superior cylinder filling, improved combustion efficiency, and increased power throughout the RPM range.

Each Victor CNC DR-17-cylinder head is cast from premium aluminum alloy and processed using Hot Isostatic Pressing (H.I.P.) technology to create a denser, more stable grain structure for enhanced durability. Fully CNC-machined ports and combustion chambers ensure exceptional consistency and airflow characteristics, while ductile iron valve seats and manganese-bronze valve guides provide long-lasting reliability in demanding racing and high-performance applications.

Features and Benefits:
- Large 120cc combustion chambers
- Fully CNC-machined ports and combustion chambers
- Large 425cc CNC oval intake ports maintain high airspeed
- Raised intake and exhaust port design improves cylinder filling
- Relocated spark plug position enhances combustion efficiency
- 17-degree valve angle improves airflow capability
- Cast from premium aluminum alloy
- Hot Isostatic Pressing (H.I.P.) processing increases material density and durability
- Ductile iron interlocking valve seats
- Premium manganese-bronze valve guides
- Precision-machined valve seats promote maximum sealing and cylinder pressure
- Designed for shaft rocker arm systems
- Compatible with standard deck blocks using tall-deck intake manifolds
- Manufactured to strict performance tolerances

Vehicle Fitment:
- 1960-1987 Chevy C10 with Big Block Chevy Engine

Please Note: These heads are designed to be used with a shaft rocker system and can bolt directly onto standard deck blocks with a tall-deck manifold, but tall deck blocks require intake runner spacers.
