Ford Performance Cold Air Intake Kit With Calibration Mustang EcoBoost 2015-2017

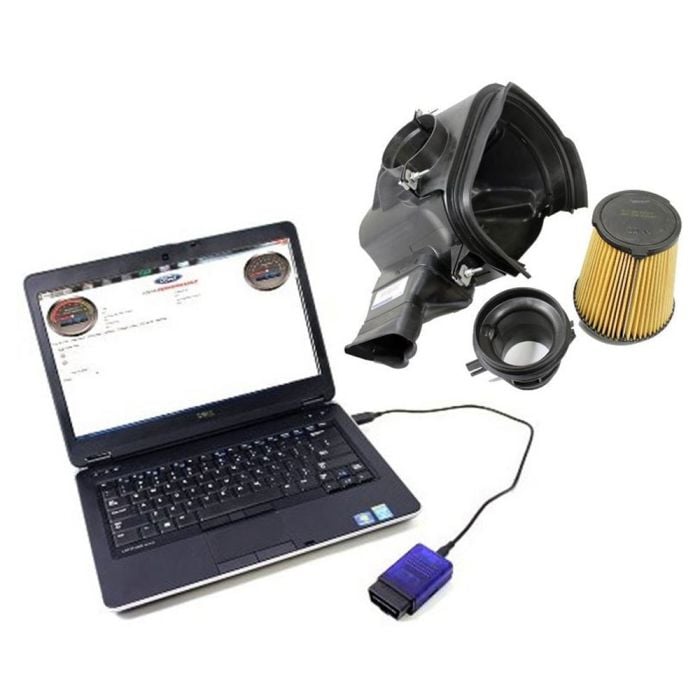

Ford Performance Cold Air Intake Kit with a Calibration for U.S. and Canadian 2015, 2016 and 2017 EcoBoost Mustangs.
California Residents: Proposition 65 Warning
This item is 50-state legal (CARB E.O. Number D-598-18)
Novice skill is required for this installation.
This Ford Performance intake featured the bucket and the filter from the GT350 and then the proprietary coupler connected to the factory tubing for the EcoBoost Mustang. This will require a calibration which is available separately from Ford Performance.
To start the installation, we always have to remove the factory components. The easiest way to do this, you remove this bolt here, disconnect the clamp, remove this harness and pull this harness and pull the whole thing out as one assembly.
We're going to remove the air sensor and then also disconnect the wiring harness from the box. With that out of the way, now you can remove the entire air assembly.
The Ford Performance upgrade kit for the EcoBoost is basically a GT350 bucket and the inlet tube, so what you have to do is actually modify this to fit the factory one by cutting a slice here and another one at the end. Just like that.
Then we'll take our modified inlet, put it over the factory piece here and slide it on. This is the kit as it comes out the Ford Performance box. Like I said, this is a take-off from the Shelby but all we're going to be using is the bucket and that filter so the first thing we're going to do is remove the filter, then take apart the bucket to remove the pieces that we're not going to use.
Next, remove these 4 nuts to separate the air box. This part we will not be using. Now we'll move back to the car and put the bucket into place. You'll have to maneuver this a little bit to get it down in here but it will fit. Get it lined up with the scoop we installed earlier. To make for a little bit better fit before we install the adapter, we're going to cut this little tab off right here.
Now we're installing MAP sensor adapter. Then tighten it down. The kit includes a new I-AT sensor which you're going to install next. With the sensor installed, we're going to bring the wire over and plug that in. Then we're going to drill a small hole over here for the factory clips. With that done, we can now reinstall our filter.
Right now you can reinstall finally, the air seal. Then we'll finally make sure the box is where it belongs and reinstall the original bolt in the back to hold it down. Double check that your seal is fitted up here when that bolt's tightened down and your installation is finished.
