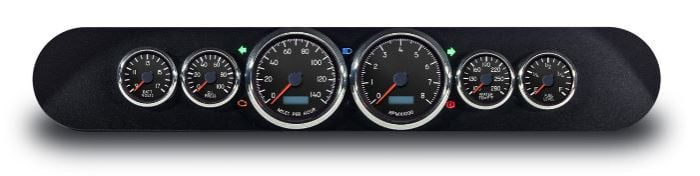

New Vintage USA Gauge Kit Aviator Series With Electronic Speedometer F-100/ F-150/ F-250/ F-350 1967-1972

Are you looking for a high-end, aftermarket kit for your 1967-1972 Ford F-100, F-150, F-250, or F-350’s gauges? If so, you’ll love this Aviator Series Gauge Kit with an Electronic Speedometer (67649-01) from New Vintage USA.

Features and Benefits:
- Made in the USA
- Direct fit 6 gauge kit
- Gen II stepper motor gauges have red LED backlighting with lit pointers
- CNC laser cut and formed for excellent fitment
- Includes mounting bracket and hardware
- Uses Phoenix Direct Drive system for easy wiring and installation
- 73-10 OHM fuel gauge

This Aviator instrument line adds distinction and function to your truck’s dash. This kit features an LED backlight that glows red for minimal pupil dilation at night. Also featured are a hard-shock case and spin-on back clamp with a vibration dampening O-ring, that is waterproof up to 35 PSI from the front. Topped with stainless and flat glass, this kit is perfect for easy viewing in open-cockpit trucks. It also features New Vintage USA's Phoenix Direct Drive system that eliminates most connections, reducing them from over 70 to just 22!

This USA-made kit gives your resto-mod truck a new and upgraded look inside. The NVU CNC laser-cut panel features turn signals and hi-beam and warning lamps. This kit also includes gauges, bracket, mounting brackets, and dash insert. Your original bezel can be painted to match or contrast your dash and insert. Also featured is a factory match 73-10 ohm fuel gauge to match your pickup’s current tank. A blend of micro-controller-driven stepper motors, air core meters, and LED lighting come together in a sturdy package with streamlined interfaces for a stress-free installation.

Kit Includes:
- Speedometer: 140MPH, drives fuel and temp, 3-7/16" mounting hole
- Tachometer: 8,000 RPM range, drives voltmeter and oil pressure, 3-7/16" mounting hole
- Fuel, temp, oil pressure, voltmeter minor gauges, 2-1/16" with 18" harness
- 1/8-27 NPT temperature and oil pressure senders with 0-30 ohm fuel gauge
- Bushing kit with 1/4" 3/8" and 1/2" adapters
- Filler gauge, 2-1/16" with 73-10 ohm factory match
- (2) programming buttons
- (2) color-coded AMP harnesses
- (6) back clamps
- Instrument panel

*Fuel and speed senders are not included in this kit but may be required, please check your application. NVU programmable speedometers will operate on stock VSS (speed sender) from stock transmission.

Vehicle Fitment:
- 1967-1972 Ford F-100
- 1967-1972 Ford F-150
- 1967-1972 Ford F-250
- 1967-1972 Ford F-350
