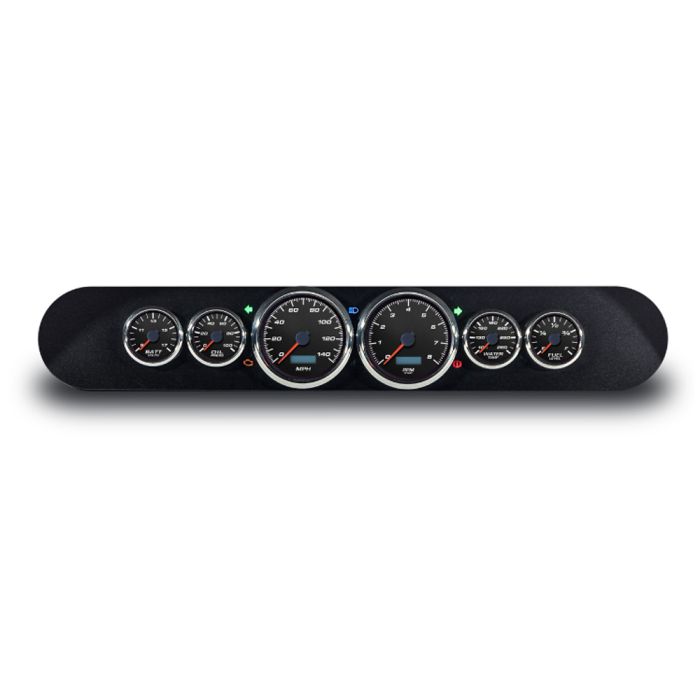

New Vintage USA Gauge Kit Performance II Series Black With Electronic Speedometer F-100/ F-150/ F-250/ F-350 1967-1972

If you’re looking to significantly improve the look of your 1967-1972 F-100, F-150, F-250 or F-350’s dash, then you need to pick up this Black Performance II Series Gauge Kit with an Electronic Speedometer (67026-01) from New Vintage USA.

Features and Benefits:
- Direct fit 6 gauge kit
- CNC laser cut and formed for superior fitment
- Includes mounting bracket and hardware
- Uses Phoenix Direct Drive system for easy wiring and installation
- 73-10 OHM fuel gauge
- Tach features 4, 6, and 8-cylinder selection
- Gen II stepper motor gauges have blue LED backlighting with red lit pointers
- Made in the USA

The Performance II Series instruments have the style of European sports cars combined with racing gauges. Full sweep stepper motors offer higher dial resolution and blue LED back lighting will provide better visibility at night. An OE look is accomplished with polished, stainless bezels and flat glass. No NVU logos are displayed on the dial, so the finished result will be both clean and professional.

You original bezel can be painted to match or contrast your dash and insert. The NVU CNC laser-cut panel features turn signals and hi-beam and warning lamps. This kit includes gauges, brackets, mounting brackets and a dash insert. This 6 gauge kit also features a factory match 73-10 ohm fuel gage to match your pickup’s existing tank. Create a new, custom look in your truck cab with this NVU gauge kit.

The programmable speedometer operates on any pulsed sender with a 3,000-64,000 Pulse per Mile (PPM) input with push-button programming. The programmable tachometer has integrated shift outputs, hour meter and operates on any tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator “W” terminal. This kit also features New Vintage USA's Phoenix Direct Drive system that eliminates most connections, reducing them from over 70 to just 22!

Kit Includes:
- Speedometer: 140MPH, drives fuel and temp, 3-7/16" mounting hole
- Tachometer: 8,000 RPM range, drives voltmeter and oil pressure, 3-7/16" mounting hole
- Fuel, temp, oil pressure, voltmeter minor gauges, 2-1/16" with 18" harness
- 1/8-27 NPT temperature and oil pressure senders with 0-30 ohm fuel gauge
- Bushing kit with 1/4" 3/8" and 1/2" adapters
- Filler gauge
- (2) programming buttons
- (2) color-coded AMP harnesses
- (6) back clamps
- Instrument panel

*Speed sender is not included in this kit, but may be required. Please check your application. NVU programmable speedometers will operate on stock VSS (speed sender) from stock transmission.

Vehicle Fitment:
- 1967-1972 Ford F-100
- 1967-1972 Ford F-150
- 1967-1972 Ford F-250
- 1967-1972 Ford F-350
