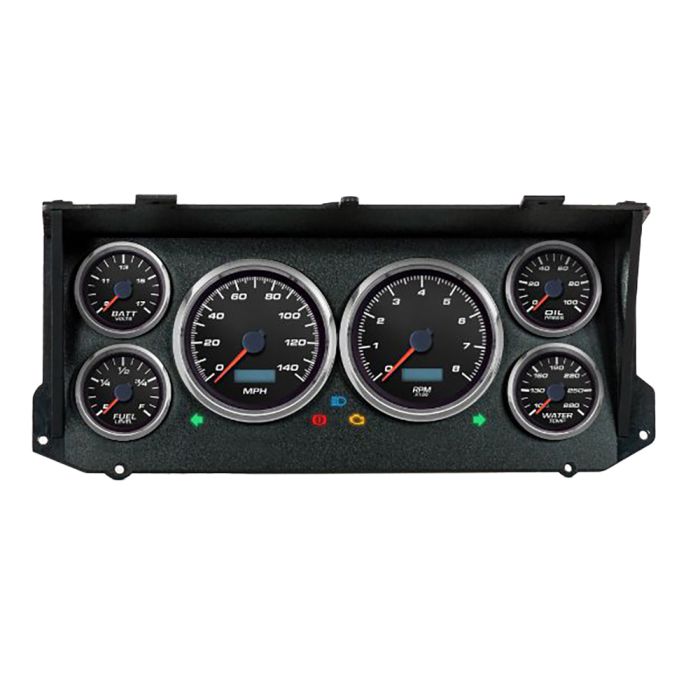

New Vintage USA Gauge Kit Performance II Series Black With Electronic Speedometer F-100/ F-150/ F-250/ F-350 1973-1979

Update the dash in your 1973-1979 F100, F-150, F-250, or F-350 with this Black Performance II Series Gauge Kit with an Electronic Speedometer (79026-01) from New Vintage USA. The Performance II Series has the style of a European sports car mixed with racing-style gauges. No NVU logos are featured on the dial so the final result has a custom and professional appearance.

Features and Benefits:
- Direct-Fit 6 Gauge Kit
- CNC-Laser Cut and Formed for Superior Fitment
- Gen II Stepper Motor Gauges Have Blue LED Backlighting with Red Lit Pointers
- Polished Stainless Steel Bezels and Flat Glass for an OE Look
- Uses the Compact Phoenix Direct Drive OLED Screen
- Easy Installation with Fewer Connections
- Made in the USA

The programmable speedometer operates on any pulsed sender with a 3,000-64,000 Pulse per Mile (PPM) input with push-button programming. The programmable tachometer has integrated shift outputs, hour meter, and operates on any tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator “W” terminal.

These gauges display your engine and ride information in a clean, easy-to-read package that now features the Phoenix Direct Drive OLED screen. The Phoenix platform is a beloved new choice for its user-selectable inputs, stepper motor technology, and reverse-compatible updates so your kit is always current.

Kit Includes:
- 3-7/16" Speedometer 140 MPH Programmable with 1 Auxiliary Input
- 3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs
- 2-1/16" Fuel Gauge, Programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm Settings)
- Temperature Gauge 140-280 F
- Oil Pressure Gauge 0-100 PSI
- Voltmeter 9-17 V
- 18" Harness for Minor Gauges
- Temperature Sender 99230-04 (1/8-27 NPT, NVU hi match)
- Oil Pressure Sender 99100-04 (1/8-27 NPT, 240-33 Ω)
- Bushing Kit with 1/4", 3/8", and 1/2" Adapters
- (2) Programming Buttons
- (2) Color Coded AMP Wiring Harnesses
- (6) Back Clamps
- Mounting Bracket
- Built-in Indicators (Turn Signal, Hi Beam, Warning Lights)

Unlike a traditionally wired gauge kit with over 70 connections required for installation, the Phoenix Direct Drive system cuts that down to a mere 22 connections. The Phoenix Direct Drive comes with color-coded AMP harnesses for a user-friendly installation process that's easier than ever.

Additional Notes:
- This kit requires you to remove your factory bezel to install the cover pieces.
- Speed sender may be required and is not included in this kit. Please check your application. NVU programmable speedometers will operate on stock VSS (speed sender) from stock transmission.
