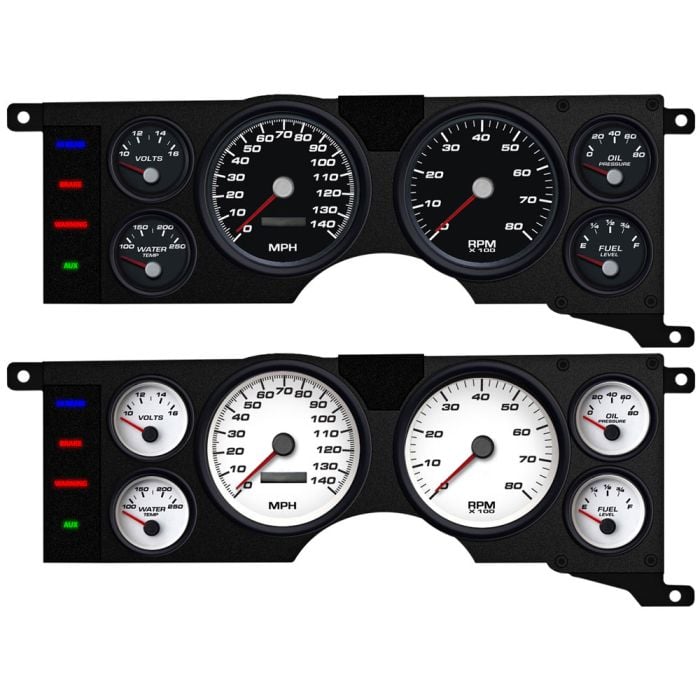

New Vintage USA Gauge Kit Performance Series With Electronic Speedometer Mustang 1979-1986

Upgrade the look of your 1979-1986 Mustang's interior by ordering this Performance Series Gauge Kit with an Electronic Speedometer from New Vintage USA. This gauge package features a blend of superb styling and production that everyone has come to admire from New Vintage USA. The gauge faces are available in white or black for a custom interior look.

Features and Benefits:
- Uses Modern Technology and Style
- Simple and Clean Install
- Available with Black or White Gauge Faces
- Slotted Holes for More Adjustment
- Retains Stock Openings and Turn Signals
- Traditional, Short Sweep Perimeter Lit Gauges
- Electronic Speedometer Operates on Any Pulse Input
- Uses the Compact Phoenix Direct Drive OLED Screen
- Easy Installation with Fewer Connections

This gauge kit will mount in place of the factory cluster in your Fox Body. Some instrument panels will not fit the same, so New Vintage USA has applied slotted holes for more built-in adjustability. The dead fronted indicators will retain the factory openings and turn signals.

Monitor your vitals in an easy-to-read package that now features the Phoenix Direct Drive OLED screen. The Phoenix platform is a beloved new choice for its user-selectable inputs, stepper motor technology, and reverse-compatible updates so your kit is always current.

Kit Includes:
- Speedometer: 140MPH; Drives Fuel and Temp; 4-3/8" Mounting Hole
- Tachometer: 8,000 RPM Range; Drives Voltmeter and Oil Pressure; 4-3/8" Mounting Hole
- 2-1/16" Fuel Gauge
- 2-1/16" Water Temperature Gauge
- 2-1/16" Oil Pressure Gauge
- 2-1/16" Voltmeter
- 18" Harness for Minor Gauges
- Temperature Sender 1/8-27 NPT
- Oil Pressure Sender 1/8-27 NPT
- Bushing Kit with 1/4", 3/8", and 1/2" Adapters
- (2) Programming Buttons
- (2) Color Coded AMP Wiring Harnesses
- (6) Back Clamps
- Instrument Panel

Unlike a traditionally wired gauge kit with over 70 connections required for installation, the Phoenix Direct Drive system cuts that down to a mere 22 connections. The Phoenix Direct Drive comes with color-coded AMP harnesses for a user-friendly installation process that's easier than ever.

Additional Notes:
- This Gauge Kit does NOT include a speedometer sending unit. Electronic speedometer requires a 16 pulse generator sending unit adapter to convert the transmission mechanical Speedometer drive to an Electronic signal.
- Depending on the year of your Mustang, some minor trimming to the plastic behind the panel may be required.
- The Tachometer operates on 4, 6, or 8 cylinder outputs from PCMs, coils, and CDI boxes.
