Sequential LED Taillight Kit 8-Pattern Mustang 1971-1973

CJ's Part Number:
TLLED71
Rating:
90% of 100

Highlights

  • Direct-Fit Replacement
  • 8 Sequential Patterns
  • Over 40 Bright LEDs Per Side
  • Correct Plug Connector
MSRP $459.09
$349.99
You save 24%
Earn
points.
Product Description

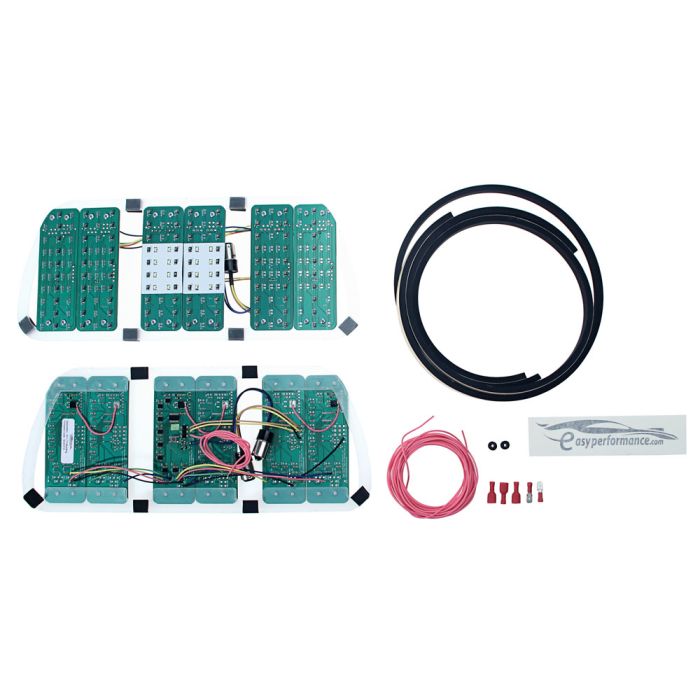

8-Pattern Sequential LED Taillight Kit for 1971, 1972 and 1973 Mustangs.

There are so many Mustangs with sequential taillights that it can be hard to stand out from the crowd. However, this 8-Pattern Sequential LED Taillight Kit for 1971-1973 Mustangs takes sequential taillights to the next level. Eight user-selectable sequential patterns are included in this plug-and-play wiring kit. Switching between the sequential patterns only requires the push of a button.

Features and Benefits:
- 40 LEDs Per Panel
- Brighter Than Stock
- Reuse OE Housing/ Lens
- All Hardware Included

Over forty bright LEDs (per panel) replace the factory incandescent bulbs. The kit is designed to utilize all available illumination area of the lenses. LEDs are brighter than incandescent lights, last much longer, and run extremely cool. LED voltage is internally regulated assuring constant brightness regardless of vehicle voltage. Input voltage is rated at 11-15 volts. The kit doesn't draw any power when the ignition is off. All mounting hardware is included.

The factory style connectors plug right into your OEM light bulb socket for simple installation. You can reuse your OEM housings and lenses. The factory taillight housing's waterproof sealing is maintained. This kit is engineered for simple mounting, wiring and operation. All circuitry is self-contained with no separate control module to mount.

Additional Notes:
- Requires low current draw flasher module. Sold separately.
- Standard Flash Mode flashes all LEDs in all panels together with the flasher relay or solid light with brake. Mimics light bulb operation.
- Demonstration Mode steps through each sequential pattern cyclically. Flashes each sequence six times before stepping to the next sequence, then repeats.

California Residents: Proposition 65 Warning

Related Categories: Mustang Lighting, Mustang Taillights, Restomod Lighting, Mustang LED Lighting, Mustang LED Taillights

Installation & Fitment

Installation Videos

Video Transcript

We’re here with a set of Custom Programmable Sequential Taillights fitting all 1971 through 1973 Mustangs.

These LED taillights will be a direct replacement for the factory bulbs found in your 1971 through '73 Mustang. Feature 116 ultra bright LEDs. 100 red LEDs for your turn signals and brake lights and 16 bright white LEDs in here for your reverse lights. These are going to install in your factory housings and install using the factory plugs. These LED taillights will be a normal plug and play installation on your '71 through '73 Mustang, if you want to add the programmability aspect you simply hook up the pink wire to a 12 volt source and now you have the adjustability of 10 different settings for the LED turn signals.

Setting one will just be a normal LED taillight. Press the button, that'll flash twice, setting two will now be your standard sequencing taillight. Three will be the sequencing with an out and back. Four will be inboard to out and then off and then outboard to in. Five will now sequence panels, you have three different panels that'll sequence. The original inboard to out. Six will be the same thing, inboard to out with the panels but then back in. Seven will go back to sequencing but it's going to start in the center and go outward. Eight will do the same thing but will go out and then come back in. Ninth option is going to be the same sequencing but center to out and then off and then center to out again. Option ten will go back to panels, separating the three different panels and is going to start on the center and work its way out. Your very last option's going to be the panels again, center to out but then it's going to come back.

Now we'll show you the brightness of the LED backup lights. This is much brighter than your standard bulb.

The programmability adds a very unique feature to these sequential LED taillights that'll make a great addition to your '71 through '73 Mustang.

Vehicle Fitment

This product will fit the following Mustang years:
