Wilwood Compact Tandem Brake Master Cylinder Polished 7/8” Bore With Push Rod

Wilwood:
260-14957-P
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 175ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Fits Most 60s to 80s Vehicles
  • Machined Aluminum Body
  • Show Quality Polished Finish
  • 75% Lighter than OE
MSRP $299.94
$277.72
You save 7%

Wilwood Polished 7/8” Bore Compact Tandem Brake Master Cylinder with a Push Rod.

The Wilwood Polished Compact Tandem Brake Master Cylinder (260-14957-P) replaces your OE brake master cylinder with something much more elegant. Machined from aluminum and revised in design, this compact master cylinder is great for weight and space savings under the hood - not to mention the modern restomod looks. These various aspects make it great for a pro touring build.

Features and Benefits:
- Fit Most Domestic ‘60s - ‘80s Vehicles
- Fluid Outlets on Both Sides of the Bore
- Die Cast Aluminum for Light Weight
- Polished Finish

Designed primarily for manual braking system applications, this Wilwood brake master cylinder features a redesigned body machined out of die-cast aluminum and polished for superior quality. It fits most ‘60s to ‘80s vehicles and only weighs three pounds, or 75% less than a cast iron brake master cylinder. OE style master cylinders are around one inch longer and one to two inches taller than the Wilwood unit, making the Wilwood compact master cylinder ideal if space under the hood is an issue. If you want a slim and great looking master cylinder for your driver or project, the Wilwood (260-14957-P) compact master cylinder is the premium option.

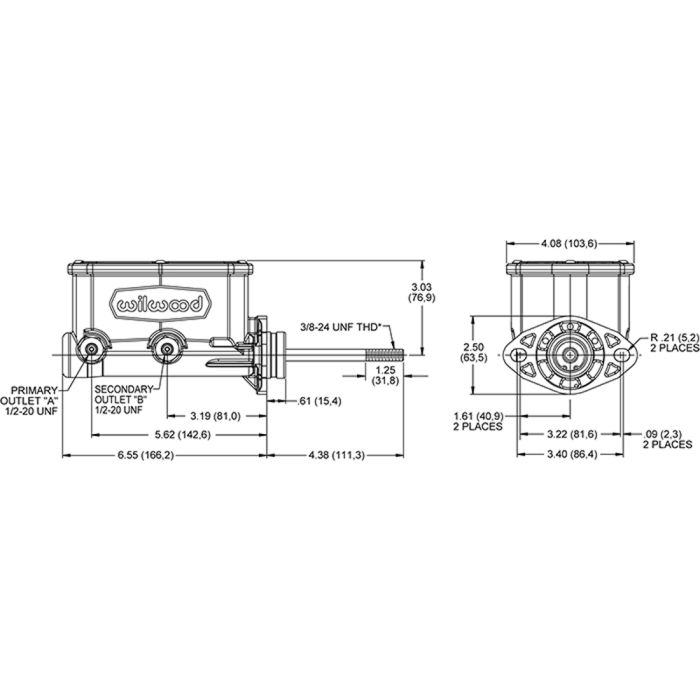

Wilwood Master Cylinder Specs:
- Bore Size: 7/8”
- Stroke: 1.10”
- Primary/Secondary Fluid Chamber Volume Ratio: 2:1
- Overall Body Length: 6.55” Inches
- Overall Height: 3.03” from Piston Bore Centerline to Top
- Mounting Flange Fitment: 3.22" - 3.4"

Please Note: Verify your fitment before purchasing this master cylinder.

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
