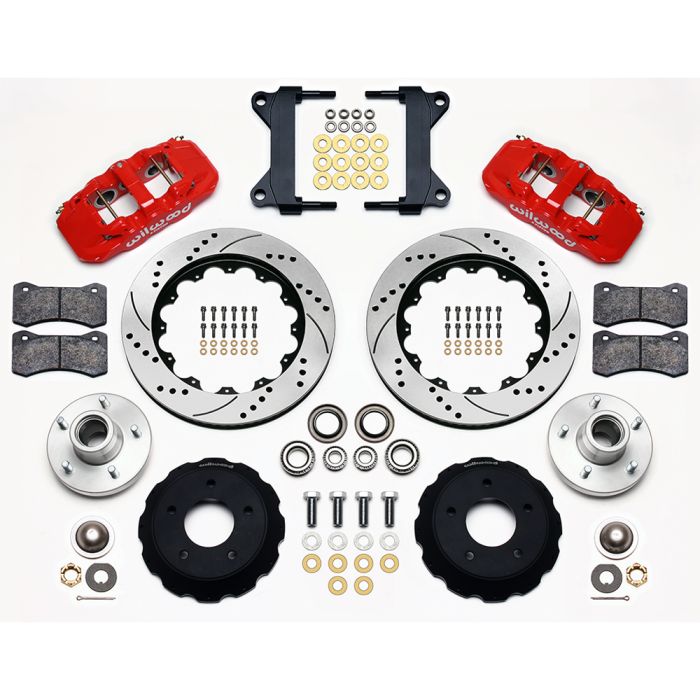

Wilwood Front Big Brake Kit AERO6 With Drilled/Slotted Rotors And Red Calipers Chevrolet C10 1963-1987

Wilwood:
140-13692-DR
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 3.99ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • AERO6 front big brake kit
  • SRP drilled and slotted rotors
  • Red powder coated calipers
  • Stainless steel pistons
MSRP $2,234.39
$1,994.99
You save 11%

Wilwood AERO6 Front Big Brake Kit with Drilled and Slotted Rotors and Red Calipers for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet C10s.

Give your classic 1963-1987 Chevrolet C10 pick-up big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles with this Wilwood 140-13692-DR AERO6 Front Big Brake Kit with Drilled and Slotted Rotors and Red Calipers. This kit provides big stopping power for towing, off-road and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 14.25”rotors provide maximum cooling for sustained high heat durability.

Features and Benefits:
- Wilwood AERO6 front big brake kit
- Fits 1963-1987 Chevy and GMC C10, and C15’s
- SRP drilled and slotted rotors
- Red powder coated calipers
- Stainless steel pistons
- For use with CPP’s drop spindles
- Greatly improved braking performance

Calipers:
- AERO6 calipers
- Red Powder Coated Finish
- Six (6) Stainless Pistons
- 4.04 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 11.1 Square Inches
- Brake Pad Compound BP-20

Rotors:
- 14” diameter
- Black powder coated accent
- 1.25” Thick
- Spec 37 Iron
- SRP drilled and slotted rotors

Rotor Hats:
- Aluminum construction
- Black powder-coated
- 1.62” offset
- Flared bell design

Hubs:
- Aluminum Construction
- Dual drilled
- 5 x 4.75 bolt pattern
- 5 x 5.00 bolt pattern

Please Note: This brake kit recommends the use of a 18” wheel or larger for clearance.

Fitment Note: This brake kit ONLY works with CPP’s drop spindles.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
