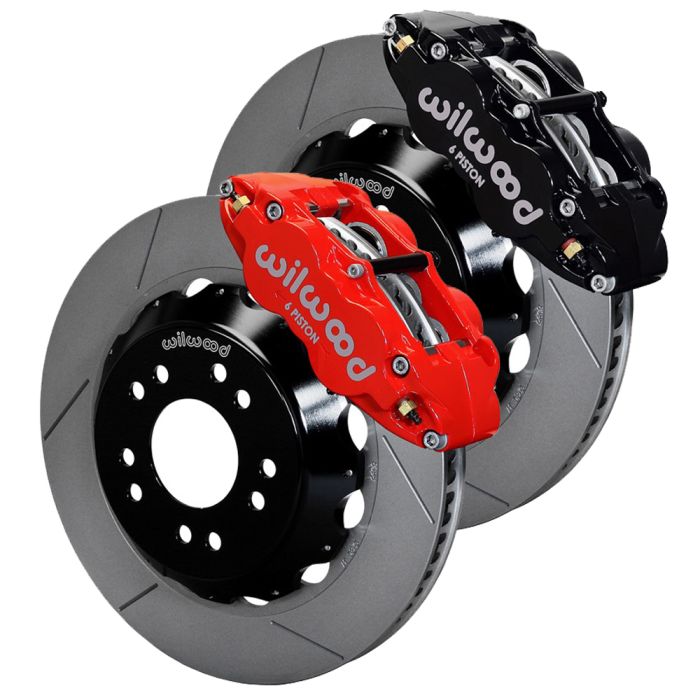

Wilwood Front Big Brake Kit Forged Narrow Superlite 6R With 14” Slotted Rotors GM Truck/Chevrolet C10 1963-1987

CJ's Part Number:
DBF255-V
From
$1,619.99

Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 14” Slotted Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 GM Trucks and Chevrolet C10s.

Have you been thinking about upgrading the front brakes in your 1963-1987 Chevrolet C10 or GM truck? If so, than this Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 14” Slotted Rotors (140-15304) is right up your alley! Be sure to order your complete brake kit from CJ Pony Parts today!

Wilwood Big Brake Kit Features:
- Direct-fit upgrade for all 1963-1987 GM trucks
- Provides better braking capability for your front end
- Includes forged narrow superlite 6R calipers in your choice of color
- Perfect for show trucks and high performance street/track applications
- Ideal if you're looking to upgrade to a larger wheel/tire package

Over the years, the original stock brakes on the front of your classic Chevy truck can really start to break down, leaving you with unreliable and unsafe brakes. Be sure you invest in something better-than-stock when you work on those brakes, like this Wilwood kit! You'll get all-new rotors, pads and calipers in this kit and everything needed to install them onto the front of your truck. The forged narrow superlite 6R calipers are available in your color choice for a high-end look and feel. This big brake kit is the perfect option for your show vehicle or if you have high-performance applications like if you race on the street or track. What are you waiting for? Give your truck the best and pick up your complete brake kit now from CJ's!

Kit Component Specs
Calipers:
- Superlite 6R forged narrow
- Available in Black or Red
- Six (6) stainless pistons
- 4.04 square inches of piston area
- Radial mounting style
- Brake pads feature 8.2" of surface area
- Uses brake pad compound BP-10

Rotors:
- 14" diameter
- GT slotted Spec-37 Iron Ultralite rotors
- 1.25" thick
- Dynamically balanced

Rotor Hats:
- Lightweight aluminum construction
- Black e-coat finish for protection
- 1.38" hat offset
- Dual drilled lug pattern: 5x4.75 and 5x5

Vehicle Fitment Note: Wilwood recommends using an 18" or larger wheel with this 14" front brake kit to ensure proper clearance.

Please Note: This Wilwood Big Brake kit has been specifically designed for use with Wilwoods Prospindles ONLY.

Replacing brakes are a necessity of owning any classic vehicle. However, while they will always wear out, the brakes on your vintage Chevrolet C10 truck don't need to wear out as fast when you install well engineered, high performance braking components. With CJ Pony Parts now offering the latest selection of brakes from Wilwood, you can find these parts at some of the best prices around. Browse around and grab the upgraded Wilwood brake kit your Chevy truck deserves, and place your order with CJ’s today!

Go ahead and purchase this brand-new Wilwood 140-15304 Forged Narrow Superlite 6R Front Big Brake Kit with 14" Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 GM Truck or Chevrolet C10 now from CJ Pony Parts!

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following C10 years:
