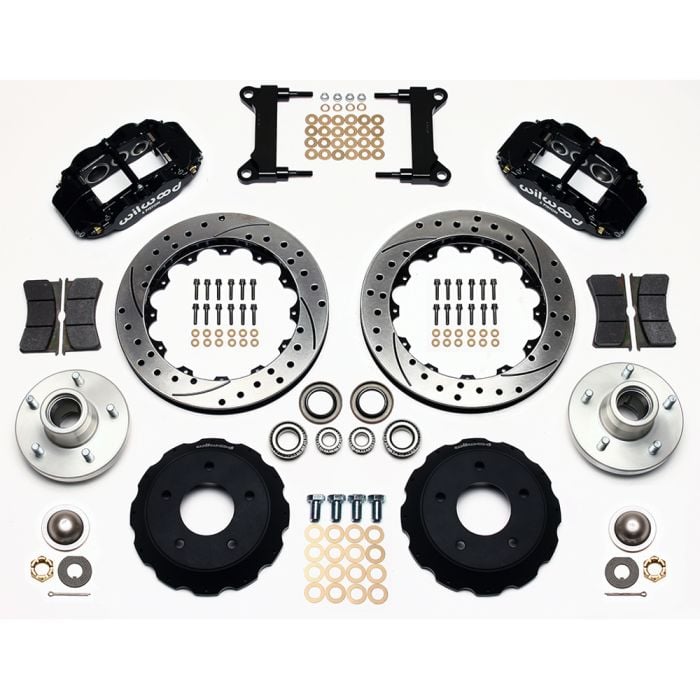

Wilwood Front Disc Brake Kit Superlite 6R With 13" Drilled/Slotted Rotors And Black Calipers Chevrolet C10 1963-1987

Wilwood:
140-10775-D
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 115.97ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Forged narrow Superlite 6R kit
  • SRP drilled and slotted rotors
  • Black powder coated calipers
  • Stainless steel pistons
MSRP $1,903.99
$1,699.99
You save 11%

Wilwood Superlite 6R Front Disc Brake Kit with 13" Drilled and Slotted Rotors and Black Calipers for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet C10s.

Get the ultimate combination of braking power and style for your classic 1963-1987 Chevrolet C10 with this Wilwood 140-10775-D Superlite 6R Front Disc Brake Kit with 13" Drilled and Slotted Rotors and Black Calipers. This kit is engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, this aftermarket kit enhances tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines.

Features and Benefits:
- Wilwood Forged Narrow Superlite 6R front big brake kit
- Fits 1963-1987 Chevy and GMC C10, and C15’s
- SRP drilled and slotted rotors
- Black powder coated calipers
- Stainless steel pistons
- For use with CPP and Ridetech drop spindles
- Greatly improved braking performance

Calipers:
- Forged Narrow Superlite 6R calipers
- Black or Red Powder Coated Finish
- Six (6) Stainless Pistons
- 4.04 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 8.2 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 13.06” diameter
- Black powder coated accent
- 1.25” Thick
- Spec 37 Iron
- SRP drilled and slotted rotors

Rotor Hats:
- Aluminum construction
- Black powder-coated
- 1.62” offset
- Flared bell design

Hubs:
- Aluminum Construction
- Dual drilled
- 5 x 4.75 bolt pattern
- 5 x 5.00 bolt pattern

Please Note: This brake kit recommends the use of a 17” wheel or larger for clearance. This brake kit is designed to work with CPP and Ridetech drop spindles.

Fitment Note: This brake kit ONLY works with drop spindles from CPP and Ridetech.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
