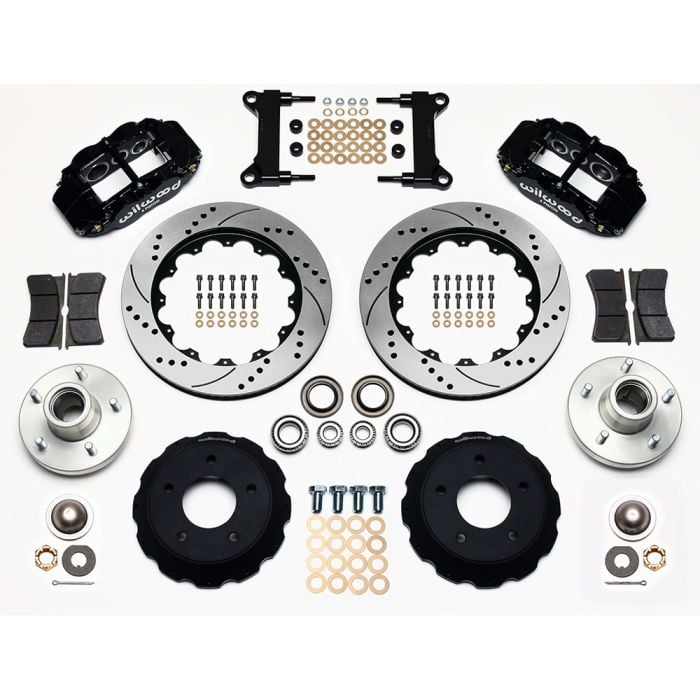

Wilwood Front Disc Brake Kit Superlite 6R With 14" Drilled/Slotted Rotors And Black Calipers Chevrolet C10 1963-1987

Wilwood:
140-10776-D
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 113.29ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Superlite 6R front big brakes
  • SRP drilled and slotted rotors
  • Black powder coated calipers
  • Stainless steel pistons
MSRP $2,043.99
$1,824.99
You save 11%

Wilwood Superlite 6R Front Disc Brake Kit with 14" Drilled and Slotted Rotors and Black Calipers for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet C10s.

If you’re looking to improve the braking performance on you classic 1963-1987 Chevrolet C10 pick-up, this Wilwood 140-10776-D Superlite 6R Front Disc Brake Kit with 14" Drilled and Slotted Rotors and Black Calipers delivers the ultimate combination of braking power and style. Built exclusively for 18” and larger wheels, this kit yields tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines.

Features and Benefits:
- Wilwood Superlite 6R front big brake kit
- Fits 1963-1987 Chevy and GMC C10, and C15’s
- SRP drilled and slotted rotors
- Black powder coated calipers
- Stainless steel pistons
- For use with CPP and Ridetech drop spindles
- Greatly improved braking performance

Calipers:
- Forged Narrow Superlite 6R calipers
- Black Powder Coated Finish
- Six (6) Stainless Pistons
- 4.04 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 8.2 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 14” diameter
- Black powder coated accent
- 1.25” Thick
- Spec 37 Iron
- SRP drilled and slotted rotors

Rotor Hats:
- Aluminum construction
- Black powder-coated
- 1.62” offset
- Flared bell design

Hubs:
- Aluminum Construction
- Dual drilled
- 5 x 4.75 bolt pattern
- 5 x 5.00 bolt pattern

Please Note: This brake kit recommends the use of a 18” wheel or larger for clearance. This brake kit is designed to work with CPP and Ridetech drop spindles.

Fitment Note: This brake kit ONLY works with drop spindles from CPP and Ridetech.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
