Wilwood Rear Big Brake Kit Superlite With Emergency Brake / Drilled/Slotted Rotors / Red Calipers Chevrolet C10 1963-1987

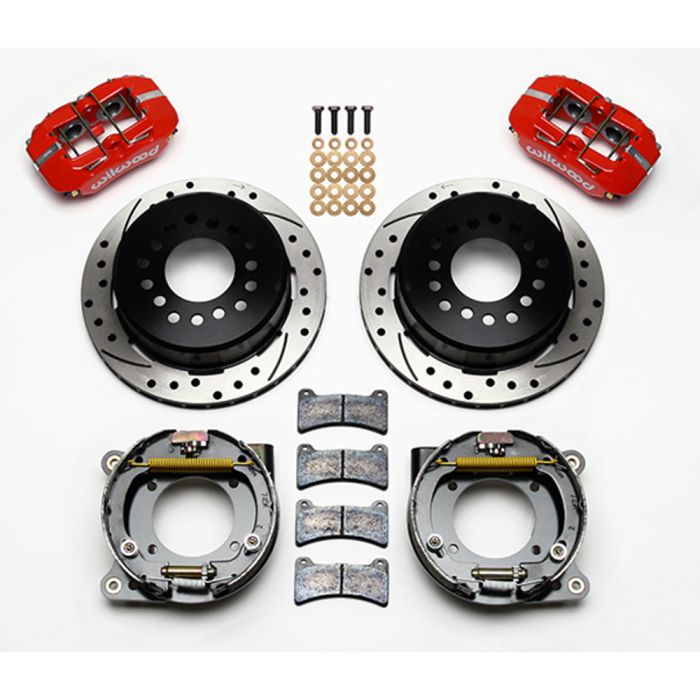

Your new Wilwood 140-11385-DR Superlite Rear Big Brake Kit with an Emergency Brake, Drilled and Slotted Rotors and Red Calipers for your classic 1963-19987 Chevrolet C10 pick-up provides a complete braking solution for applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. The included forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies and high friction pads provide optimized and balanced braking. The neatly hidden internal shoe system yields a clean installation with enhanced static holding power for parking.

Features and Benefits:
- Wilwood Dynapro Low-Profile rear brake kit
- Fits 1963-1987 Chevy and GMC C10, and C15’s with large Chevy C10 flange
- Ultralite Drilled and Slotted rotors
- Red powder coated calipers
- Stainless steel pistons
- Greatly improved braking performance

Calipers:
- Forged Dynapro Low profile calipers
- Red Powder Coated Finish
- Four (4) Stainless Pistons
- 1.98 Square Inches of Piston Area
- Lug Mounting Style
- Brake Pad Area 5.1 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 11” diameter
- Ultralite SRP drilled and Slotted
- 0.81” Thick
- Iron construction
- Vane vented

Rotor Hats:
- Black powder-coated
- 5 x 4.50 bolt pattern
- 5 x 4.75 bolt pattern
- 5 x 5.00 bolt pattern

Please Note: This brake kit recommends the use of a 14” wheel or larger for clearance.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.
