Wilwood Rear Brake Kit D154 With Drilled/Slotted Rotors/Emergency Brake/Red Calipers Chevrolet C10 1963-1987

Wilwood:
140-12569-DR
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 128.91ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Red powder coated calipers
  • Stainless steel pistons
  • For large flange rear ends
  • Improved braking performance
MSRP $904.39
$794.99
You save 12%

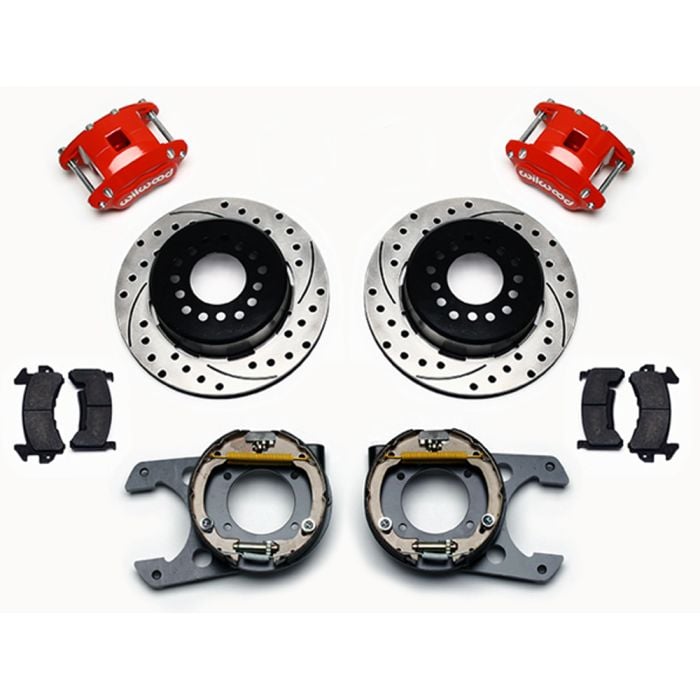

Wilwood D154 Rear Brake Kit with Drilled and Slotted Rotors, an Emergency Brake and Red Calipers for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet C10s.

This Wilwood 140-12569-DR D154 Rear Brake Kit with Drilled and Slotted Rotors, an Emergency Brake and Red Calipers provides a complete solution for your classic 1963-1987 Chevrolet C10 that requires a parking brake. For almost any application the forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking. Along with superior static holding power for parking, the neatly hidden internal shoe system provides a clean installation.

Features and Benefits:
- Fits 1963-1987 Chevy and GMC C10, and C15’s
- Red powder coated calipers
- Stainless steel pistons
- For Large Chevy C10 Flange rear end
- Greatly improved braking performance
- Both 5X4.5 and 5x4.75 bolt patterns

Calipers:
- D154 Wilwood calipers
- Red Powder Coated Finish
- Two (2) Stainless Pistons
- 1.98 Square Inches of Piston Area
- Floating Mounting Style
- Brake Pad Area 8.7 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 12.19” diameter
- .81” Thick
- Iron construction
- Plain rotor surface
- Ultralite HP design

Please Note: This brake kit recommends the use of a 16” wheel or larger for clearance.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
