Wilwood Rear Brake Kit D154 With Parking Brake/Red Calipers Chevrolet C10 1963-1987

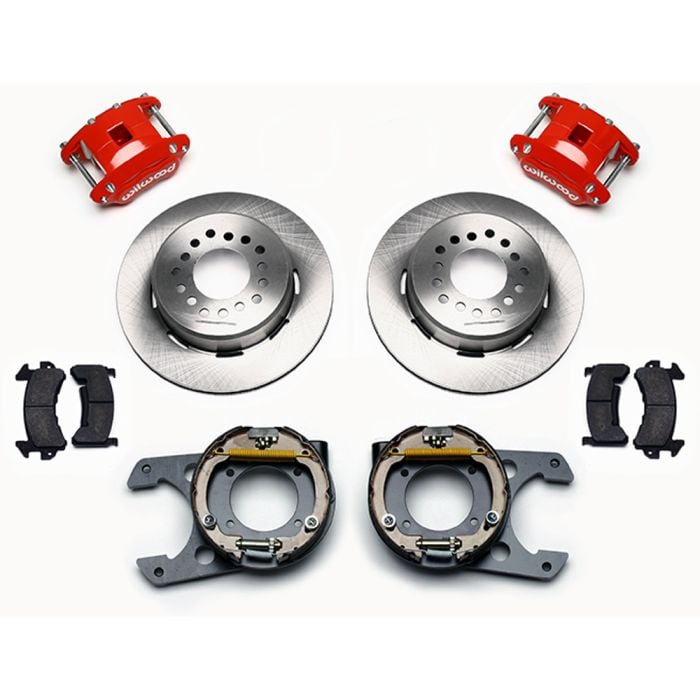

This Wilwood 140-12569-R Rear Brake Kit with a Parking Brake and Red Calipers provides a complete solution for your 1963-1987 Chevrolet C10 that requires a parking brake. Featuring forged D154 dual piston calipers, 12.19” one-piece drum/rotors and high friction pads provide optimized and balanced braking. This is ideal for all types of custom-performance street/strip and show machines. The quaintly hidden internal shoe system provides a clean installation with superior static holding power when your pick-up is parked.

Features and Benefits:
- Fits 1963-1987 Chevy and GMC C10, and C15’s
- Red powder coated calipers
- Stainless steel pistons
- For Large Chevy C10 Flange rear ends
- Greatly improved braking performance
- Both 5X4.5 and 5x4.75 bolt patterns

Calipers:
- D154 Wilwood calipers
- Red Powder Coated Finish
- Two (2) Stainless Pistons
- 1.98 Square Inches of Piston Area
- Floating Mounting Style
- Brake Pad Area 8.7 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 12.19” diameter
- .81” Thick
- Iron construction
- Plain rotor surface
- Ultralite HP design

Please Note: This brake kit recommends the use of a 16” wheel or larger for clearance. This brake kit is designed to work with CPP and Ridetech drop spindles.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.
