Wilwood Rear Disc Brake Kit Superlite 4-Piston Black Drilled And Slotted 12.88" Chevrolet C10 1963-1987

Wilwood:
140-10093-D
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 127.53ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
MSRP $1,786.39
$1,594.99
You save 11%

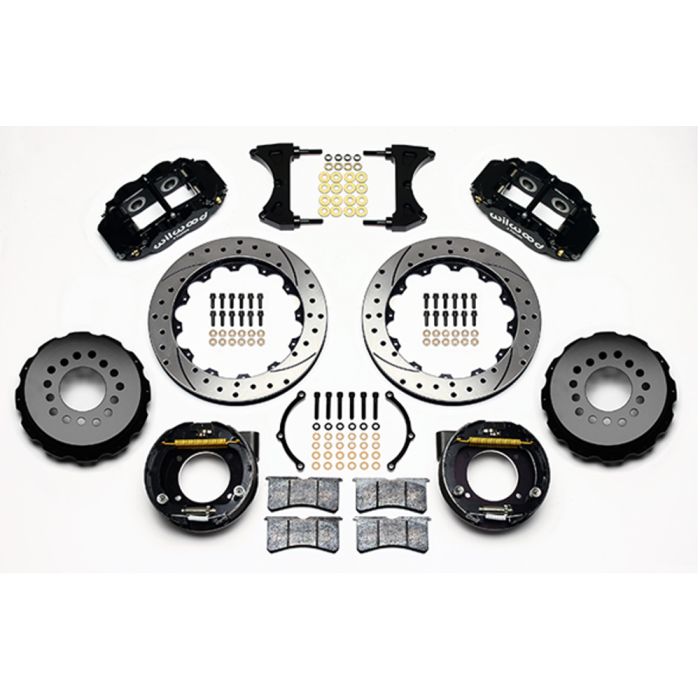

Wilwood Black Superlite 4-Piston Rear Disc Brake Kit with 12.88" Drilled and Slotted Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet C10s.

Brakes are one of the most important parts for your truck, so ensure maximum safety and performance with this Wilwood (140-10093-D) Black Superlite 4-Piston Rear Disc Brake Kit with 12.88" Drilled and Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 Chevrolet C10. Featuring high-end BP-10 compound pads that deliver optimized and balanced braking for your street machine.

Features and Benefits:
* Wilwood Forged Narrow superlite 4R rear big brake kit with parking brake
* Fits 1963-1987 Chevy and GMC C10, and C15’s with large Chevy C10 flange
* SRP drilled and slotted rotors
* Black powder coated calipers
* Stainless steel pistons
* Greatly improved braking performance

Calipers:
- Forged narrow superlite 4R calipers
- Black Powder Coated Finish
- Four (4) Stainless Pistons
- 1.98 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 8.2 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 12.88” diameter
- Ultralite SRP drilled and slotted rotors
- 1.1” Thick
- Iron construction
-curved Vane vented
-Dynamically balanced

Rotor Hats:
- Aluminum construction
- Black powder coated
- 1.54” hat offset
- 5 x 4.50 bolt pattern
- 5 x 4.75 bolt pattern
- 5 x 5.00 bolt pattern

Please Note: This brake kit recommends the use of a 17” wheel or larger for clearance.

Replacing brakes are a necessity of owning any vehicle. However, while they will always wear out, the brakes on your C10 don't need to wear out as fast when you install well engineered, high performance braking components, like those that are available from Wilwood. With CJ Pony Parts now offering the latest selection of brakes from Wilwood, you can find these parts at some of the best prices around. Order today.

Purchase yourself this (140-10093-D) Wilwood Black Superlite 4-Piston Rear Disc Brake Kit with 12.88" Drilled and Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 Chevrolet C10 from CJ Pony Parts today.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
