Aeromotive Stealth EFI A1000 Street Fuel System Kit With 5.0L Rails GT 2005-2009

Aeromotive:
17309

Highlights

  • Comprehensive Kit
  • Supports 1000+ Horsepower
  • Variable Fuel Delivery Speed
  • Great For Street And Track Use
MSRP $2,456.56
$2,292.99
You save 7%

Aeromotive Stealth EFI A1000 Street Fuel System Kit With 5.0L Rails for 2005, 2006, 2007, 2008 and 2009 GT Mustangs.

If your S197 is putting out serious horsepower, you’ll need a fuel system to match. This Mustang Stealth Fuel System (17309) includes the Aeromotive Stealth A1000 fuel pump, which integrates with your stock Mustang tank, fuel-level sending unit, and jet-siphon transfer pump. It can handle over 1,000 horsepower for your street or track needs.

Features and Benefits:
- For 2005-2009 Mustang GTs with engine swap to 5.0L 4V Coyote and/or equivalent intake.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/track applications.
- Made in USA

Aeromotive provides all the fuel system hard-parts you’ll need, including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing.

Please Note:
- Fuel Lines and Hose-Ends Sold Separately
- The purchase of a separate tach adapter may be required to operate the Fuel Pump Speed Controller
- For Limited Duty or Racing Applications, please see P/N: AER17308.

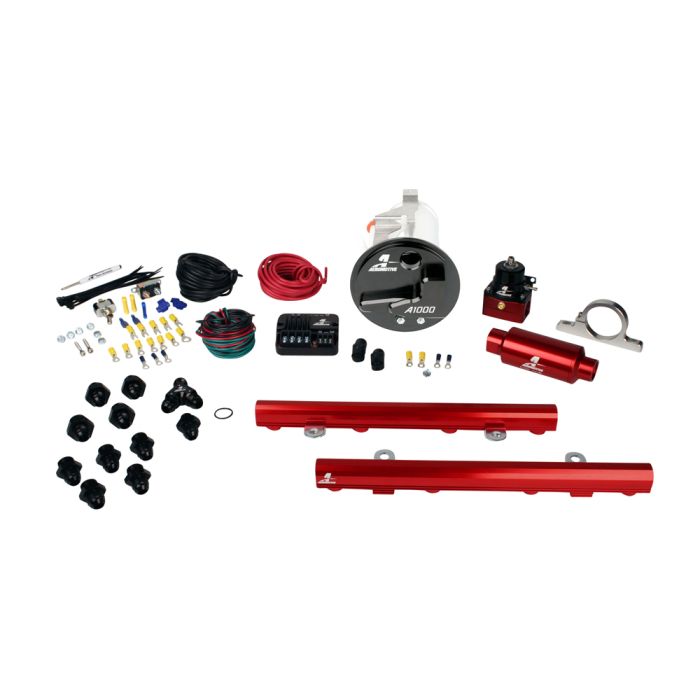

This Kit Contains:
- (1) Set of 5.0L Coyote Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Filter Bracket
- (1) 40-micron Filter Assembly
- (1) Fuel Pump Speed Controller
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol based fuels.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
