CJ Classics Polyurethane Bushing Kit Mustang With 1-9/16" Lower Control Arm 1967-1972

CJ's Part Number:
POLYKIT13-V

Highlights

  • Heat Resistant Motor Mounts
  • Shock Tower Bumper Set
  • Fits Multiple Front Sway Bars
  • Polyurethane Rubber w/ Grooves
From
$487.42

CJ Classics Polyurethane Bushing Kit for 1967, 1968, 1969, 1970, 1971, and 1972 Mustangs with 1-9/16" Lower Control Arm.

Bushings are purposed to absorb vibration and reduce obnoxious noise. To clean up the suspension travel of your 1967-1972 Mustang. Each component is fitted for your Mustang's 1-9/16-inch lower control arms and multiple front sway bar diameters. The CJ Classics Polyurethane Bushing Kit includes progressive bump stops, motor mounts, and a transmission mount that will absorb vibration and prevent your suspension from bottoming out.

Features and Benefits:
- Fitted for Multiple Mustang Front Sway Bar Diameters
- Made of Polyurethane Rubber w/ Built-In Lubrication Grooves
- Steel Brackets with Adjustable Oblong Bracket Holes
- Lower Control Arm Bushing Set includes Grease Packet
- Strut Rod Bushings Reuse Factory Hardware
- Progressive Compression-Rate Bump Stops
- Proper Rebound Prevents Suspension Bottoming Out
- Polyurethane Leaf Spring Bushings Resist Deflection
- Vibration Absorbing Mount Mounts for 289/302/351 Engine
- Thicker Coil Spring Insulator Inner Lip Protects Spring/Spring Seat

*The Polyurethane transmission mount will not fit 4-speed Toploader Transmissions. It will fit a T-5 Transmission when doing a conversion.

*The Strut Rod Bushing Set does not include sleeves or washers.

To negate a stiff ride, the lower control arms and shock tower bumpers prevent the upper control arm from colliding with the outer shock tower cover. In addition, bind is eliminated and a coil spring insulator deflects vibration and keeps excessive noise to a minimum. To prevent premature tearing, the coil spring insulator inner lip is taller and thicker to center the spring.

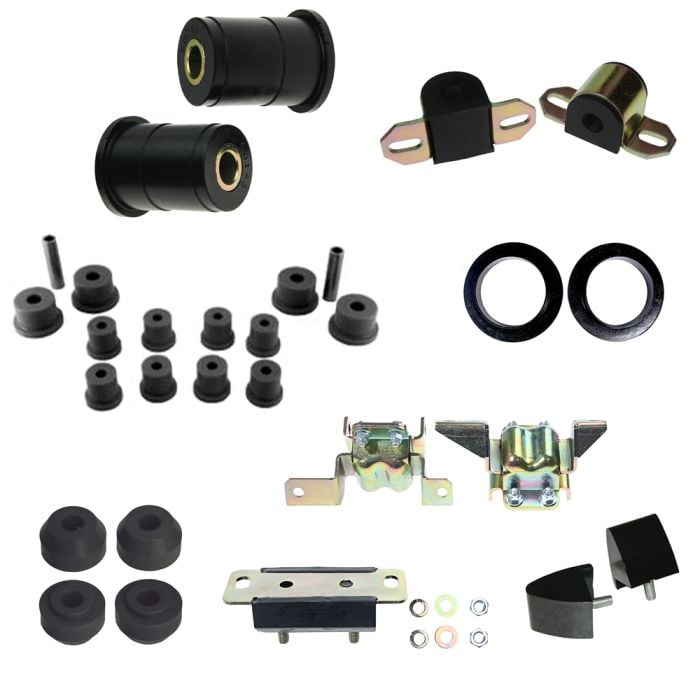

Kit Includes:
- Polyurethane Lower Control Arm Bushing Set
- Polyurethane Sway Bar Bushing Set
- Polyurethane Strut Rod Bushing Set
- Polyurethane Shock Tower Bumper Set
- Polyurethane Leaf Spring Bushing Kit
- (4) Black Front Eye Bushings
- (8) Black Rear Shackle Bushings for 1/2" Bolts
- (2) Polyurethane Motor Mounts (Driver & Passenger Side)
- Polyurethane Transmission Mount
- (2) 1/8" Polyurethane Coil Spring Insulators (Driver & Passenger Side)

Please Note: Some 1965-1966 Mustangs may have 9/16" rear shackle bolts, whereas most 1965-1966 Mustangs have 1/2" bolts. It is important to verify which size rear shackle bolts are in your Mustang before ordering.

Tech Tip: Measure the existing bushing to determine if there is a 1-7/16" version or 1-9/16" version control arm shell. This Bushing Kit does not include metal shells. These are designed to be pressed into the existing shells.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Mustang years:
