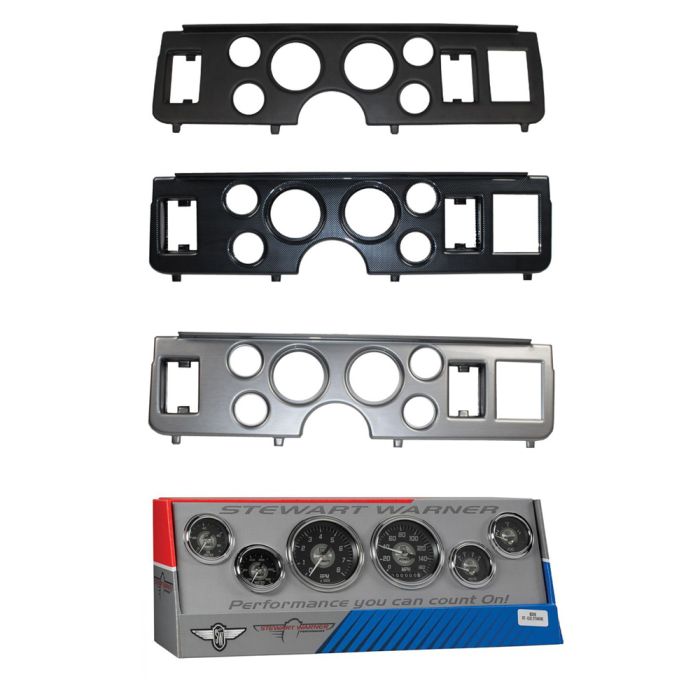

Classic Dash Instrument Bezel 6-Hole W/ Stewart-Warner Power Electric Titanium Gauge Kit Mustang 1979-1986

Add a sporty, race-inspired touch to your 1979-1986 Mustang’s interior with a Classic Dash 6-Hole Instrument Bezel with a Stewart-Warner Power Series Electric 6-Gauge Kit. Available in several finishes, the dash bezel is fabricated from a robust, UV-resistant ABS composite for superior longevity. Each Power series gauge has a polished bezel ring and titanium accents complementing its sleek black face. Featuring a hall effect sensor with push-button calibration, the speedometer is simple to operate. Along with the tach, oil, water, fuel, and voltage gauges, this kit comes with the necessary sending units to ease the installation!

Features and Benefits:
- Designed for 1979-1986 Mustangs
- Bezel available in several gorgeous finishes
- Power series gauges w/ titanium accents/black faces
- Instrument bezel made from UV-resistant ABS composite
- Electric gauges w/ connections provided where applicable
- Speedometer w/ push-button calibration/hall effect sensor
- Tachometer and speedometer measure 3-3/8”
- Oil, water, fuel, and voltage measure 2-1/16”
- Unique, racecar-inspired appearance
- Sending units included for proper readout
- Manufactured in the United States

Kit Includes:
- (1) 6-Hole Instrument Bezel
- Speedometer: 0 to 160 MPH
- Tachometer: 0 to 8,000 RPM
- Oil Pressure: 0 to 80 PSI
- Water Temperature: 100F to 240F
- Fuel Level: E to 1/2 to F
- Voltmeter: 10 to 16 VDC
- Fuel Level Sender Float Arm Ohms: 240-33.5

Tech Tip: 12V or 24V light kits are sold separately. These are available for 5/8-inch and 1/2-inch light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations.

Please Note: The brushed aluminum and carbon fiber options are both simulated finishes applied to the face of the instrument bezel.
