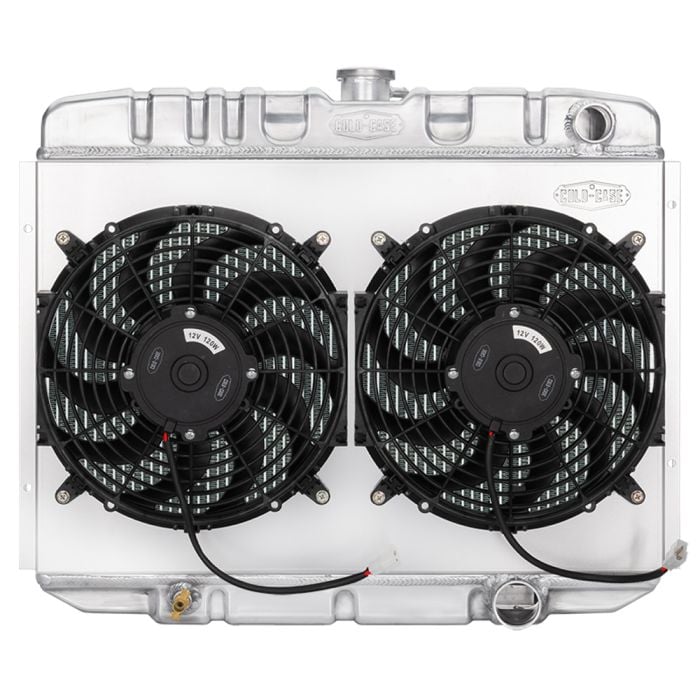

Cold Case Radiators Aluminum Radiator 24" With Fan And Shroud Small Block Mustang 1967-1970

Aftermarket radiators are essential after modifying or upgrading your engine. For maximum cooling, these Performance Radiators (FOM587K) provide sixteen fins per inch in an efficient 2-row layout.

Features and Benefits:
- 100 percent TIG welded
- Fan Diameter 12 Inch
- Polished OE style tanks
- Corrugated fins aid surface area and thermal transfer
- Direct fitment for 67-70 Mustang

These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful. They are designed to outperform competing 3-row and 4-row designs. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.

Specifications:
- 16 inch Core Height
- 24 inch Core Width
- 21.5 inch Overall Height
- 25.5 inch Overall Width
- 6.75 inch Overall Thickness
- 1.5 inch Upper Hose
- 1.75 inch Lower Hose
- Two 1" Tubes

Tech Tips:
- The core support in stock Mustangs is narrower than these oversize radiators, but they can easily adapt to fit.
- All Cold Case 24” Radiators for 1967-1970 Ford Mustangs, require High Performance Radiator Brackets RADB11 and RADB3 for a direct fit installation. In additions to this, it is recommended that you use HW3211 and HW1304 to further ease installation, due to Cold Case utilizing an advanced 2 Row Design, rather than the factory 3 rod design.
