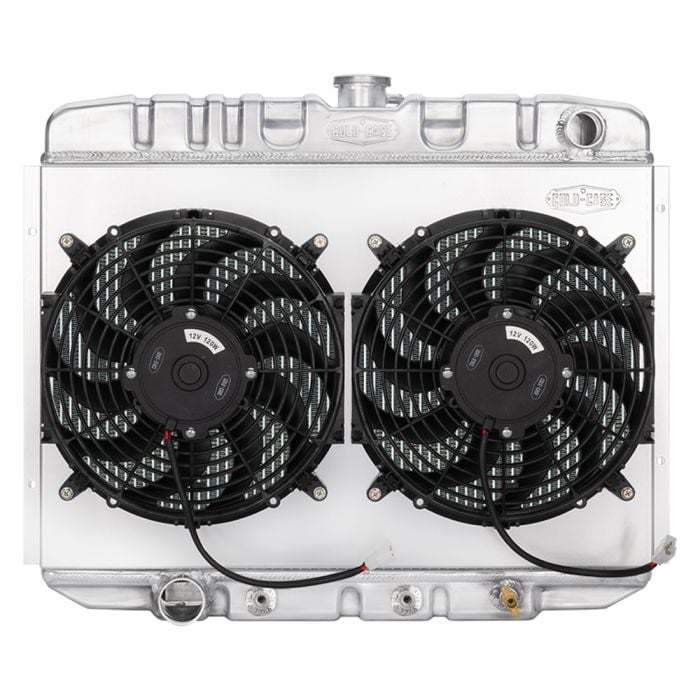

Cold Case Radiators Radiator 24" Aluminum Performance With Fan/ Shroud Mustang 390/ 428 With Automatic Transmission 1967-1970

With 16 fins per inch, this corrugated Cold Case Radiator features an increased surface area to keep your 390 or 428 engine cool and prevent overheating. This 24" Aluminum Performance Radiator (FOM588AK) is also equipped with dual 12" fans and shrouds to improve airflow efficiency. Without the shroud, the bare fan loses airflow as it deflects off the blades. For the best cooling and performance, install this Radiator inside your 1967-1970 Mustang with an Automatic Transmission.

Features and Benefits:
- 100 Percent TIG Welded
- Fan Diameter: 16 Inches
- All-Aluminum Construction
- Polished OE-Style Tanks
- 16 Fins Per Inch
- Corrugated Fins for Increased Surface Area and Thermal Transfer
- Pressure Tested
- Paintable
- Original Appearance and Correct Stamping
- Direct Fitment for 67-70 Mustang
- Old Part Number: RPE588AK

This Cold Case oversized 2-row Radiator is superior to the cooling power of a 3- or 4-row aluminum Radiator. Since it's jumbo-sized, it's capable of cooling your Big Block engine without straining.

Radiator Specifications:
- Core Height: 17.5 inches
- Core Width: 24 inches
- Overall Height: 21.25 inches
- Overall Width: 25 inches
- Overall Thickness: 6.75 inches
- Upper Hose: 1.5 inches
- Lower Hose: 1.75 inches
- Tubes (2): 1 inch
- Trans Cooler Fitting: 1/8" National Pipe Thread

The Radiator's all-aluminum build is reinforced with 100 percent TIG welding for strength and reliability. Once it's painted, it'll look just like an original! It's even designed with all the correct stamping.

Vehicle Fitment:
- 1967-1970 Mustangs
- 390 or 428 Engines
- Automatic Transmission

Tech Tip: This is the radiator with RH inlet and LH outlet for Big Blocks.
