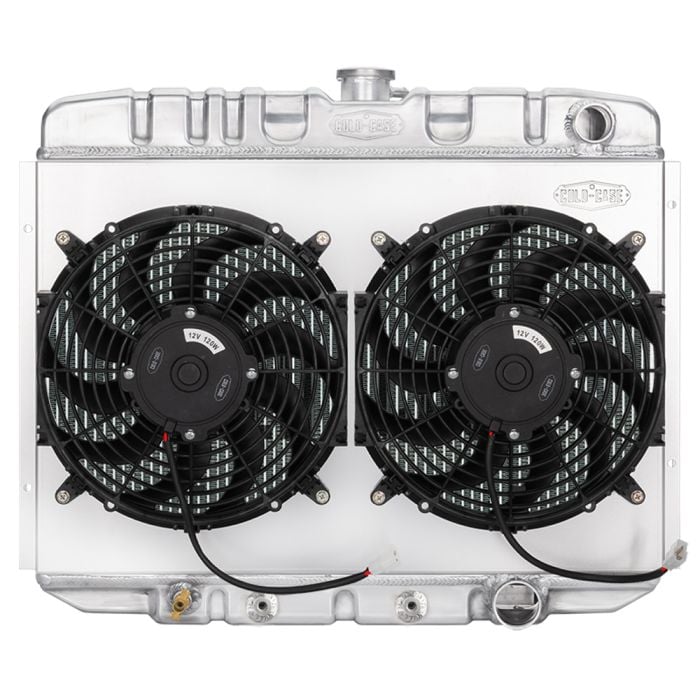

Cold Case Radiators Radiator Performance Aluminum 24" With Fan/Shroud Mustang 289/ 302/ 351 With Automatic Transmission 1967-1970

Wider than most performance radiators, the Cold Case Radiators 24" Aluminum Performance Radiator includes a dual Fan and Shroud kit to increase surface area and thermal transfer from 289, 302 or 351 engines. The TIG-welded aluminum construction is a precise fit that adds little weight to your 1967-1970 Mustang's engine bay. A passenger-side inlet and outlet are found on the 2-row radiator. To support performance-rated cooling, two 12-inch electric fans and included shrouds are featured on the radiator as well. Combined with one-inch tubes, the corrugated fins distributes unwanted heat away from your engine.

Features and Benefits:
- Full Aluminum TIG-Welded Construction w/ Polished Finish
- Dual 12" Fan/Shroud Kit with Passenger Side Inlet/Outlet
- 16 Corrugated Fins per Inch for Added Surface Area and Thermal Transfer
- 24" Wide, 2-Row Design to Support Cooling

Specifications:
- Core Height: 16"
- Core Width: 24"
- Overall Height: 21.5"
- Overall Width: 25.5"
- Overall Thickness: 6.75"
- Upper Hose: 1.5"
- Lower Hose: 1.75"
- Tubes: (2) 1" Tubes
- Trans Cooler Fitting: 1/8" National Pipe Thread

Tech Tip: All Cold Case 24” Radiators for 1967-1970 Ford Mustangs, require High Performance Radiator Brackets RADB11 and RADB3 for a direct fit installation. In additions to this, it is recommended that you use HW3211 and HW1304 to further ease installation, due to Cold Case utilizing an advanced 2 Row Design, rather than the factory 3 rod design.

Vehicle Fitment:
- 1967-1970 Mustang w/ Automatic Transmission and 289, 302 or 351 engine
