COMP Cams Camshaft Set XFI NSR Stage 1 For Naturally Aspirated Engines 4.6L 3V GT 2005-2010

COMP Cams:
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 118.71ms
  • bvseo-msg: HTTP status code of 404 was returned;
MSRP $862.18
You save 10%

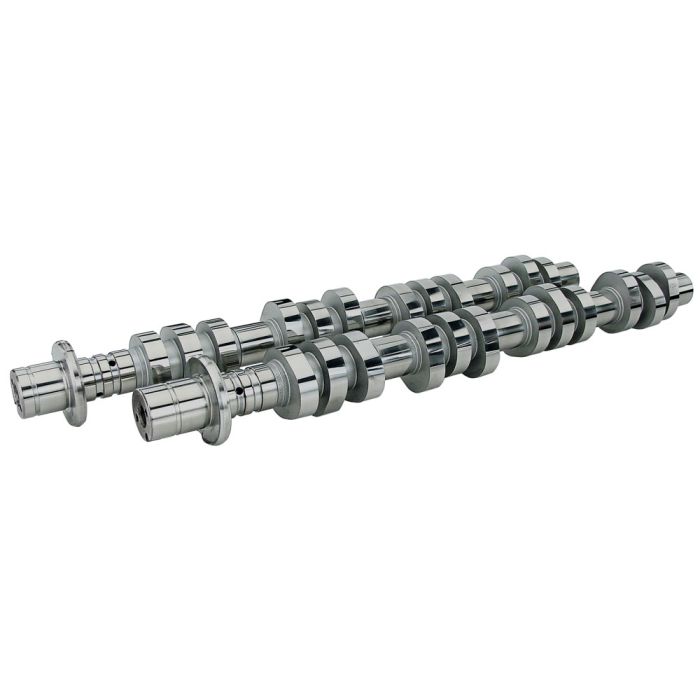

COMP Cams No Springs Required XFI Stage 1 Camshaft Set for Naturally Aspirated 2005-2010 4.6L 3V Mustang GTs.

The COMP Cams XFI NSR (No Springs Required) Cam Sets for Ford 4.6L/5.4L Modular 3V Engines are the first truly "drop-in installation" camshafts ever created for this popular application - striking the perfect balance of performance versus installation difficulty.

Offered for both naturally aspirated and supercharger-equipped engines these cam sets require no additional computer re-tuning; however testing has shown that mild tuning can result in power gains even greater than the normal 25 rear wheel horsepower.

These camshafts are fully compatible with the factory variable cam timing (VCT) system and are designed to operate in the stock RPM range. The stage 1 cam set is designed to maximize mid-range power and torque.

-RPM Range 750-6200 (solid power gains above 4700 RPM)
-Duration: Intake 253/ Exhaust 270
-Duration @ .050" Lift: Intake 214/Exhaust 227
-Lobe separation (degrees) 114
-Intake centerline (degrees) 100
-Valve Lash Hydraulic
-Valve Timing: 0.05
-Valve Lift: Intake 0.45/ Exhaust 0.45

Vehicle Fitment

This product will fit the following Mustang years:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.19ms
  • bvseo-msg: HTTP status code of 404 was returned;

This product has instruction to install it?

Asked by: Gabypug
You should consult a ford service manual for installation.
Answered by: rk cjpp
Date published: 2017-06-07
