Dakota Digital Gauge Instrument Cluster Assembly VHX With Carbon Fiber Style Face 1990-1993

CJ's Part Number:

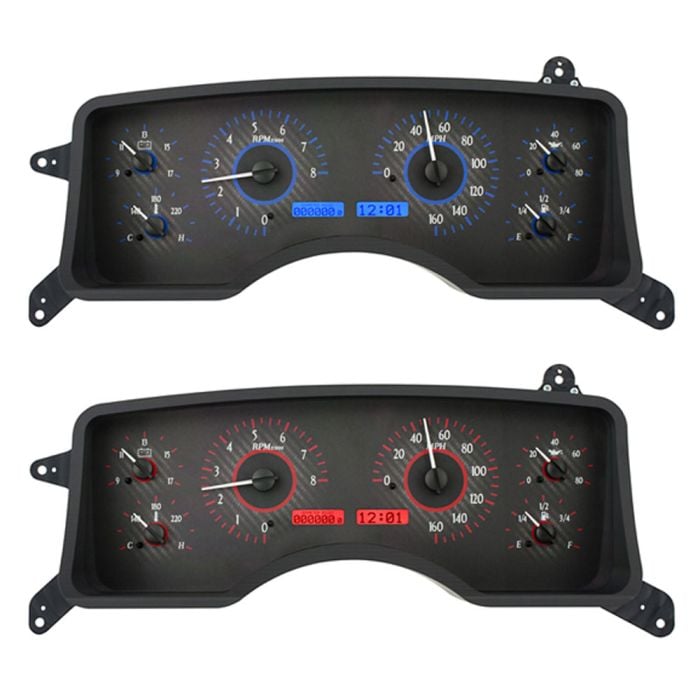

Dakota Digital VHX Gauge Instrument Cluster Assembly with a Carbon Fiber Style Face for all 1990, 1991, 1992 and 1993 Mustangs.

Looking to give the gauge display of your '90-'93 Mustang the upgrade that it warrants? Check out Dakota Digital's VHX Gauge Instrument Cluster Assembly with a Carbon Fiber Style Face that is currently offered at CJ Pony Parts. This assembly fits right into a 1990, 1991, 1992 or 1993 Mustang's stock bezel, making for an easy installation for a high-quality modification.

Gauge Instrument Cluster Features:
- Carbon Fiber Style Gauge Faces
- Fully Lit Needles & Backlit Faces in Your Choice of Red or Blue
- Two Highly Visible LCD Message Centers
- User-Customized Display Feedback
- Laboratory-Grade Solid State Sensors for Unparalleled Accuracy
- Easy Set-up & Troubleshooting
- Built-In Illumination
- Works with Other Stock or Aftermarket Sensors
- Micro-Controlled Precision Stepper Motor
- Includes a Demonstration Mode
- Ensures Secure Wire Termination
- Completely Adjustable Warning Points
- Makes Metric Conversions

These gauge instrument cluster assemblies from Dakota Digital have numerous features that make this upgrade one of the very best, including user-customizable display feedback, highly visible fully lit needles, backlit faces and high-quality LCD message centers. These message centers provide you with a variety of information including easy-to-read numerical versions of your gauges, as well as metric conversions in case you prefer using KPH instead of MPH. Additional information from these LCD message centers are your odometers, a clock, your high speed recall, high RPM recall, 0-60 MPH time, 1/4 mile time and 1/4 miles end speed.

There is a Demonstration Mode for the LCD message centers that allow you to see your various instrument readouts while your '90-'93 Mustang is standing still. You’ll also be able to see adjustable warning points in these message centers that notify you of any potential problems going on within your car.

Gauge Displays Include:
- Fuel Level - Empty-Full Analog, 0-99% Digitally
- Speedometer - 0-160 MPH Analog, 0-255 MPH Digitally
- Oil Pressure - 0-80 PSI Analog and Digitally
- Water Temperature - 140-220F Analog, 0-300F/0-150C Digitally
- Tachometer - 0-8,000 Analog, 0-9,990 Digitally
- Voltmeter - 8-17 VDC Analog and Digitally

These VHX gauges come with a carbon fiber style face that blends nicely with your choice of an appealing red or blue light display. This light display switches on at night with a built-in illumination that is triggered when you turn on the headlights or parking lights. This gauge assembly also shows your standard indicators including turn signals, cruise control, high beams, parking brake, check engine and wait to start (when equipped).

Dakota Digital also includes a micro-controlled prevision stepper motor & laboratory-grade solid state sensors for this assembly. These sensors provide extraordinary accuracy primarily for your speedometer, water temperature and oil pressure. The speedometer sensor translates a mechanical speedometer wire to digital when appropriate, and is 100% programmable to various rear-end gearings & tire sizes. The oil pressure & water temperature sensors don't just include 1/8" NPT sensors, but also bushings to adapt to 1/4", 3/8", and 1/2" NPT. All of the other gauges will work with your stock sensor or any one that is aftermarket.

Additional Components:
- Control Box
- Universal Sender Pack
- 36" CAT5 Cable
- Ford Speed Adapter
- Turn Signal Harness
- Indicator Block-Off Lens

The VHX system includes an outboard control box that adds a sense of simplification to your upgrade. Instead of routing all of the cables to their individual instruments, they are routed to the control box that is tucked away under the dash in a convenient location. A single ribbon wire then connects the control box to the display, wiping out any potential mess that could occur. This Dakota Digital gauge assembly also has on-board diagnostics that make for easy troubleshooting, as well as terminal strips that make sure the termination of a cable wire is harmless.

*Instrument bezel is not included (sold separately).

Order a Dakota Digital VHX Gauge Instrument Cluster Assembly with a Carbon Fiber Style Face for your 1990, 1991, 1992 or 1993 Mustang from CJ Pony Parts today!

Installation Difficulty


Novice skill is required for this installation.

Installation Videos

Vehicle Fitment

This product will fit the following Mustang years:
