Dakota Digital Gauge Instrument Cluster Assembly VHX With Silver Alloy Style Face 1990-1993

CJ's Part Number:
From $755.25

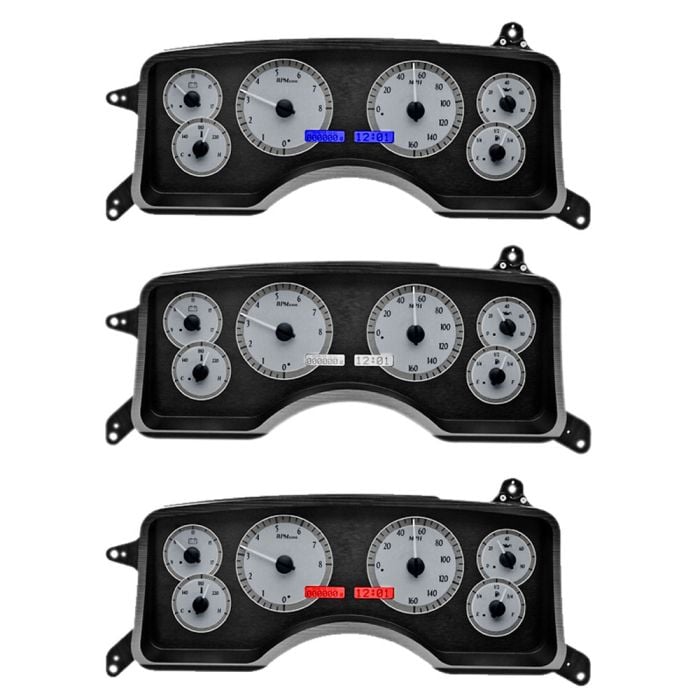

Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face for all 1990, 1991, 1992 and 1993 Mustangs.

Give your 1990-1993 Mustang a drastic improvement to its gauge display with this Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face. With its superior presentation, as well as the ability to fit right into a 1990, 1991, 1992, or 1993 Mustang's stock bezel, this VHX assembly provides you with a great way to apply a simple, yet outstanding modification to your gauge display.

Gauge Instrument Cluster Features:
- Silver Alloy Style Gauge Faces
- Fully Lit Needles & Backlit Faces in Your Choice of Red, White or Blue
- Two Highly Visible LCD Message Centers
- User-Customized Display Feedback
- Laboratory-Grade Solid State Sensors for Unparalleled Accuracy
- Micro-Controlled Precision Stepper Motor
- Ensures Secure Wire Termination
- Includes a Demonstration Mode
- Works with Other Stock or Aftermarket Sensors
- Completely Adjustable Warning Points
- Built-In Illumination
- Makes Metric Conversions
- Easy Set-up & Troubleshooting

This VHX gauge instrument cluster assembly from Dakota Digital is one of the very best upgrades you'll find with features like the highly visible fully lit needles, backlit faces, user-customizable display feedback and two superior-quality LCD message centers. These message centers provide a wide range of information, including transferring the analog readings of your gauges into easy-to-read numerical versions. Additional data you can access in these message centers are your odometers, a clock and a range of performance readings that can be manually reset. These readings include:

- High Speed Recall
- High RPM Recall
- 0-60 MPH (0-100 KPH) time
- 1/4 Mile Time
- 1/4 Miles End Speed (trap speed)

You can even access these readings while your 1990-1993 Mustang is standing still with a Demonstration Mode, perfect to show off your system at a show or event. These LCD message centers also allow you to convert your readings to metric with the push of a button, as well as show you warning points that appear when there is a potential issue going on within your '90-'93 Mustang.

Gauge Displays Include:
- Speedometer - 0-160 MPH Analog, 0-255 MPH Digitally
- Oil Pressure - 0-80 PSI Analog and Digitally
- Water Temperature - 140-220F Analog, 0-300F/0-150C Digitally
- Fuel Level - Empty-Full Analog, 0-99% Digitally
- Tachometer - 0-8,000 Analog, 0-9,990 Digitally
- Voltmeter - 8-17 VDC Analog and Digitally

Dakota Digital's gauges have a silver alloy style face, along with your choice of a red, white or blue light display that is easy on the eyes. This light display turns on at night with a built-in illumination that is activated once you switch on the headlights or parking lights. Additionally this VHX gauge cluster displays the indicators for your '90-'93 Mustang, including:

- Check Engine
- Turn Signals
- High Beams
- Cruise Control
- Parking Brake
- Wait to Start (when equipped)

This gauge assembly from Dakota Digital also has attributes that you may not necessarily see, such as a micro-controlled prevision stepper motor and laboratory-grade solid state sensors. The sensors produce superb accuracy primarily for your '90-'93 Mustang's speedometer, water temperature & oil pressure. All of the other gauges will operate with your stock sensors or your modified ones. The speed sensor is completely programmable to various rear-end gearings & tire sizes and converts a mechanical speedometer wire to a digital display when necessary. The water temperature & oil pressure sensors have 1/8" NPT sensors along with bushings that accommodate to 1/4", 3/8" & 1/2" NPT.

Additional Components:
- Control Box
- 36" CAT5 Cable
- Universal Sender Pack
- Ford Speed Adapter
- Turn Signal Harness
- Indicator Block-Off Lens

The additional components for this VHX system gauge assembly are highlighted by an outboard control module that is the core of the assembly and helps simplify the process. Rather than hooking up each cable to its individual instrument, the cables are hooked into the control module that is conveniently tucked away underneath the dash. A single ribbon wire is then routed from the module to the display, eliminating any possible clutter that would likely materialize. Dakota Digital's gauge assembly also contains terminal strips that ensure the termination of a wire is secure, as well as on-board diagnostics that allow for a painless troubleshooting process.

*Instrument bezel is NOT included (sold separately).

Order a Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face for your 1990, 1991, 1992 or 1993 Mustang from CJ Pony Parts today!
