Dakota Digital Gauge System VHX With Carbon Fiber Style Face And Analog Display Chevrolet C10 1967-1972

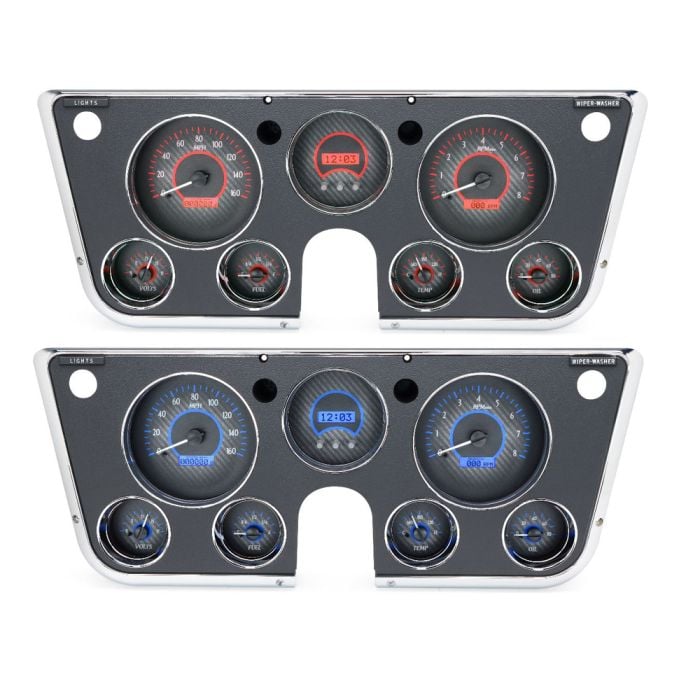

Getting the modern technology you want in your classic truck doesn't mean disrupting your vintage interior. This VHX Gauge System with Carbon Fiber Style Faces and Analog Display from Dakota Digital is a direct-fit replacement for your 1967-1972 Chevy C10's original gauges that re-uses your factory bezel. With this upgraded assembly you'll get all the modern functionality you desire and a colorful, easy to read display.

This Dakota Digital replacement gauge assembly (P/N: VHX-67C-PA-C) features six highly accurate gauges, an analog clock and digital readouts. The speedometer runs up to 160mph, while the tachometer runs up to 8,000rpm. The gauges have carbon fiber style faces and are back lit with either red or blue to make the numbers, tick marks, annunciators, needles, indicators and digital message centers for information that's easy to read at a glance. The displays are auto-contrasting LCDs for optimal view even in the brightest sunlight. The displays and backlighting come in your choice of either red or blue.

Analog Gauges:
- Speedometer (0 - 160 MPH)
- Tachometer (0 - 8,000 RPM)
- Oil Pressure (0 - 80 psi)
- Water Temperature (100 - 260ºF)
- Fuel Level (E, 1/4, 1/2, 3/4, F)
- Voltmeter (9 - 17 VDC)
- Clock (12-hour)

Lighting:
- Back Lit with LEDs
- Auto-Contrasting LCD Display

*Fits factory bezel (not included).

While the gauges are analog, you can access the information on the digital displays for exact psi for oil pressure, water temperature and fuel level on a 0 to 100% scale. The assembly comes with built in indicators: turn signals, high beams, check engine, parking brake and more. The integrated gear position indicator requires P/N: GSS2000 to function. The included sensors come with 10-foot wiring harnesses for easy and hassle-free installation. The speed sensor's harness replaces the GM-style speedometer cables for a neater engine bay.

Please Note: GSS2000 is required for gear indicator function and is sold separately.

Digital Message Centers
Standard Displays:
- Odometer (user settable, Million Mile)
- Dual (A/B) Trip Meter (0 - 9,999.9)

Performance Meters:
- 0 - 60 MPH Timer
- 1/4 Mile Time
- 1/4 Mile End Speed (trap speed)
- High Speed Recall
- High RPM Recall

Gauges:
- Speedometer (0 - 255 MPH)
- Tachometer (0 - 9,900 RPM)
- Oil Pressure (0 - 100 / 1 psi increments)
- Water Temperature (100 - 300ºF / 40 - 150ºC)
- Voltmeter (9 - 17 VDC)
- Fuel Level (0 - 99%)

Built-In Indicators:
- Turn Signals (left/right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (when equipped)
- Gear Position (P/N: GSS-2000 required)
- 4 x 4 (when equipped)
- Wait to Start (when equipped)

Included Sensors:
- Water Temperature with 10ft Harness
- Oil Pressure with 10ft Harness
- Speed Sensor with 10ft Harness
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT, 12mm and 16mm x 1.5 Threads

For your convenience, these instruments are programmed and operated using the included pushbuttons. The buttons are used to calibrate the speedometer and set the cylinder count and fuel level gauge. Once these are configured, you can use the buttons to access the information stored in the digital message centers. The buttons can be easily mounted in the place of your choice of easy accessibility.

Order this Dakota Digital (VHX-67C-PA-C) VHX Gauge System with Carbon Fiber Style Faces and an Analog Display for your 1967, 1968, 1969, 1970, 1971 or 1972 Chevrolet C10 from CJ Pony Parts today!
