Holley Level 2 LS Swap Essentials Kit Chevy C10 67-72 for Narrow Frame Rails

Complete your LS swap with this Level 2 essentials kit that allows you to mount your engine, transmission, and oil pan. It fits 1967-1972 C10s with narrow frame rails and offers better clearance for up to 3" dual exhaust kits. It also comes with installation hardware for the oil pan.

Features and Benefits:
- Engineered for proper engine and transmission placement
- CAD-designed to optimize driveline angles
- Reduces vibration and improves power transfer
- Heavy-duty clamshell engine mounts included
- Polyurethane inserts reduce engine movement
- Provides clearance for up to 3" dual exhaust systems
- 5.6-quart cast aluminum oil pan provides max crossmember clearance
- Provides highest clearance available for up to 3" dual exhaust system routing
- Oil pan will clear a 4" stroke crankshaft
- Oil pan includes two 1/2" NPT oil return ports for turbochargers (one port on each side)
- High-quality cast aluminum Oil Pan: 5.6qt
- Designed for factory-style fitment
- Available for multiple transmission configurations

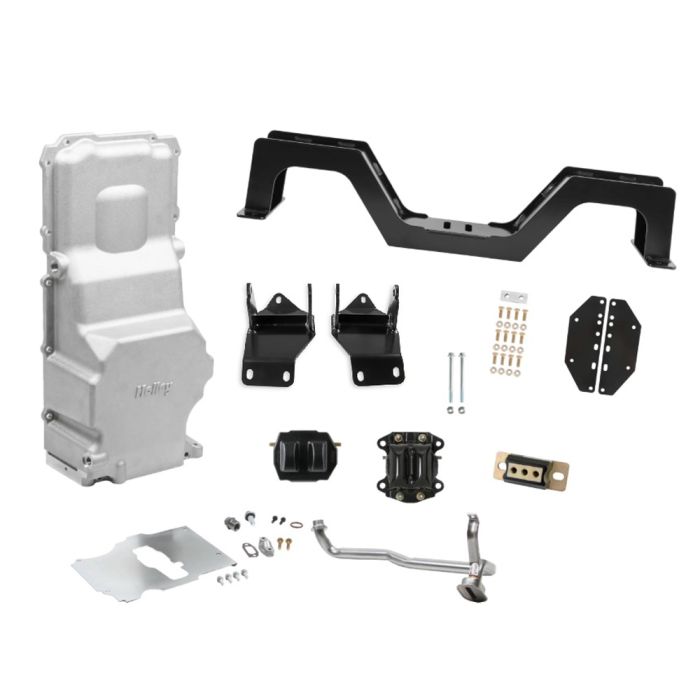

Kit Includes:
- (2) Heavy Duty LS Clamshell Engine Mounts
- (2) Polyurethane Engine Mount Inserts (Black)
- (1) Polyurethane Transmission Mount (Black)
- (1) Engine Mount Thru-Bolt Hardware Kit
- (2) Engine Swap Brackets
- (1) Transmission Crossmember
- (1) LS Braided Steel Dipstick and Black Powder Coat Tube Kit
- (1) LS Oil Pan kit Front Most Clearance
- (1) Oil Pan Bolt Kit Stainless Steel
- (1) Oil Pan Gasket Molded Rubber w/ Aluminum Carrier

Vehicle Fitment:
- 1967-1972 Chevy C10
- Gen 3 or Gen 4 Engine
- Narrow Frame Rails

Please Note: 1967 C10s came in both a 1.75-inch "narrow" frame rail configuration, and a 2.375-inch "wide" frame rail configuration. To determine which version you have, measure the frame width at the crossmember area where the engine mount bolts in.
