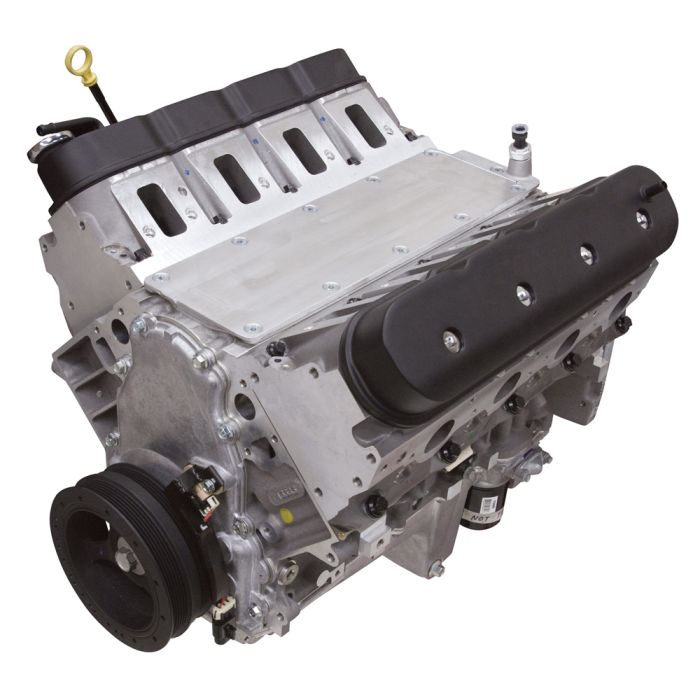

Edelbrock Victor Jr. LS 416 Crate Engine Long Block for Forced Induction Applications
Edelbrock Victor Jr. LS 416 Crate Engine Long Block for Forced Induction Applications
Edelbrock Part # 46720 is the same long-block used on our E-Force LS Supercharged crate engine that delivers 720 horsepower and 695 ft-lbs. of torque on 91 octane pump gas. It features an aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley h-Beam connecting rods and Manley forged aluminum pistons to create a 416ci LS3 stroker with 4.065" bore and 4 stroke. Its compact design allows for a seamless swap into most platforms; eliminating the need for modifications to your engine bay or hood. This long-block is a great foundation for starting any high performance forced induction LS based build.Engine Specifications: • Finish: Black powder coated • Displacement: 416 c.i.d. • Horsepower: Upwards of 720 HP when used with Edelbrock supercharger • Torque: Upwards of 695 ft/lbs. when used with Edelbrock supercharger • Compression: 9.5:1 • Block: LS3 Aluminum • Crankshaft: Forged 4340 • Pistons: Forged Aluminum • Rods: Forged H-Beam • Camshaft: 215°/247°, .629/.656, 121 LSA • Rocker Arms: LS3, 1.7 ratio • Cylinder Heads: GM with Edelbrock Valve Springs #5768 • Warranty: 2-year / Unlimited mileage • Long Block only. Does not come with an induction system.
Installation Notes
Oil pan dimensions: 2.625" tall at the front, sump measures 6.75" (front) to 7.75" (rear) high and 7.75" in length. See our web site for reference dimensions.
Your engine is supplied with Edelbrock Break-In Oil in the crate. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming.
California Residents: Proposition 65 Warning
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
- 1964.5,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
- 1999,
- 2000,
- 2001,
- 2002,
- 2003,
- 2004,
- 2005,
- 2006,
- 2007,
- 2008,
- 2009,
- 2010,
This product will fit the following Sierra years:
This product will fit the following Sierra 2500/3500 years:
This product will fit the following Silverado years:
This product will fit the following Silverado 2500/3500 years:
