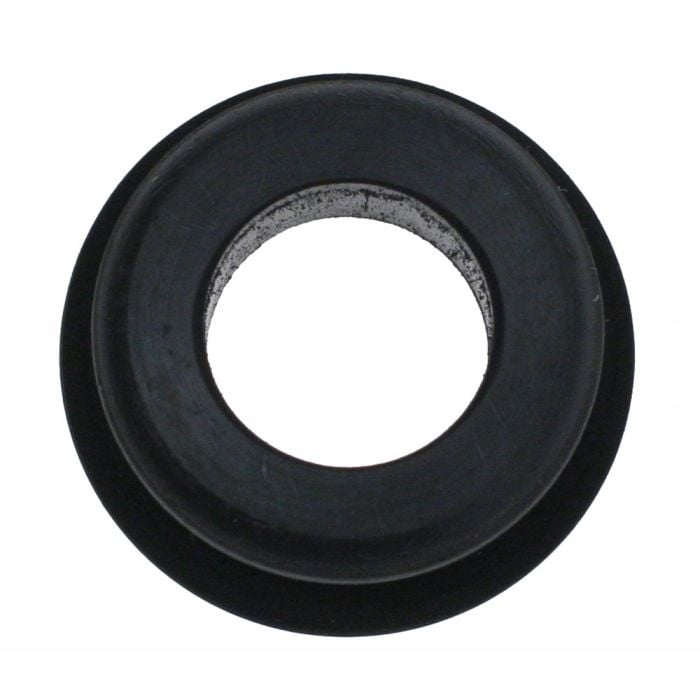

PCV Valve Grommet 6-Cylinder 1965-1970/Small Block V8 1965-1968/ V8 1979-1985
PCV Valve Grommet for 1965, 1966, 1967, 1968, 1969 and 1970 6 Cylinder Mustangs, 1965, 1966, 1967 and1968 Small Block V8 Mustangs and all V8 1979, 1980, 1981, 1982, 1983, 1984 and 1985 Mustangs.
This PCV valve grommet is a direct replacement when swapping out a brittle or cracked grommet from a Mustang using the stock steel valve covers. This quality produced replacement grommet for your Mustang's PCV valve is designed to fit in the 1 inch opening found on your valve cover. On any 1979-1985 V8 application, the PCV grommet is located on the driver side valve cover. This grommet is sold individually.
- Inner Diameter = 11/16"
- Outer Diameter = 1"
Wether your replacing your PCV valve or just the grommet, you want to make sure that all parts of the PCV system are in good condition and functioning properly. Even just a bad grommet can let harmful moisture back into your engine's internals and potentially damage more costly systems. Make sure to get your PCV system replacement parts for your 65-70 6-Cylinder, 65-68 V8 Small Block or 79-85 V8 from CJ Pony Parts and be confident that moisture is not contaminating your Mustang's engine.
California Residents: Proposition 65 Warning
These Scott Drake Valve Covers will fit your small-block Ford and will be the correct color for your 1964-1/2 through 1965 Mustang, and you want to pick up a set of gaskets to install these. While we're in there, we're actually going to restore our factory air cleaner by repainting it, put some new stickers on to give a nice, fresh look.
Parts used for this installation video include Scott Drake Valve Covers VC43, PTGLD Gold Paint, PTBLK Black Engine Paint, DEC013 Air Cleaner Decal, DEC150 Front Air Cleaner Decal, VCG20 Valve Cover Gaskets, F481 Valve Cover Bolts, HW1355 PCV Grommet, and HW388 Air Cleaner Snorkel Snout Screws.
Our 289 on our 1965 Convertible runs real well, but it's definitely starting to show its age a little bit. Now we're not looking for a show quality engine bay, but the valve covers and a fresh coat of paint on the air cleaner should really clean up the engine.
We'll start just by getting the air cleaner off, we'll do the valve covers first. We're going to pull the spark plug wires off of here first. You can actually remove them, or you can just move them out of the way. There's honestly plenty of space to work, so you really don't have to take them off. Then we'll start by removing the bolts. I'm going to get the original gasket off here.
Now you want to clean this surface off here, to make sure there's no residue from the original gasket. Use a scraper for big pieces, a little bit of sandpaper for the smaller stuff.
We have our new valve cover here with our gasket, so what we're going to do, there's little slots here to press the cork in, that'll hold the gasket in place, makes it easier to line the bolts up when we install it. I use cork or rubber, I actually prefer the cork ones, but either one will work. Make sure it's seated, now it's ready to go on the car.
While we're replacing the covers we'll put some new hardware in as well, as you start with the top center one. Don't tighten it all the way down, just get it snug that you can still move the cover, get everything else lined up. Now working from the inside out, we'll snug them down. You don't have to get these real tight either, just get them snug. Now I'm going to do the same thing over on the passenger side.
Before we even get started over here on the passenger side, you can see how much better the engine bay looks just by installing a valve cover. Both of these along with the new air cleaner all cleaned up should make it look a lot better.
We'll put a new PCV Grommet in the valve cover. Install the PCV. Now I can move on to the air cleaner.
I'm going to start by taking everything apart first then cleaning it and sanding it down. First thing we're going to do is take the snorkel off the base. Now we're working on the lid itself, and you want to get the original stickers off. Now depending how old they are, these have obviously been replace at some point in time, a heat gun, get them as soft as possible, and if you have to use a scraper or razor blade, whatever, you'll need the surfaces as clean as possible before we paint it. Yours probably won't come off that easily.
Now what you want to do is get some sandpaper, and just scuff the surface. It doesn't have to be completely stripped down. Just to make sure there's no build up on it anywhere. Once you have it scuffed, then you want to thoroughly clean it up and get it nice and dry before we paint it.
Now if you had to take down your air cleaner beyond the gold paint down to almost bare metal, at this point you want to use a primer. Now in our case since the gold is still there, we're just going to paint right over it. You want to make sure you're in a well-ventilated area when you do this. I'm going to do a couple even coats on it. I'm going to repeat the process with the base which is also going to be in gold, and the snorkel gets painted black.
Now we're going to install our 289 sticker on here. I'm not putting all the correct decals on, this is not by any means correct, all we're just doing is making the engine bay look a little bit nicer. We're going to place the front decal as well.
Reassemble the snorkel, we'll use new hardware here as well.
That's all there is to it, you're installation is finished.
A set of Scott Drake Valve Covers and a little bit of paint, and the engine bay on Lucy looks a lot better than it did before. Now like I'm saying this is not a correct by any stretch, kind of restoration, this is just making it a little bit better and a little bit cleaner to look at. So this is an installation that anybody can do, it's an excellent first timer for someone who's looking to start to working on their car. It's about an hour of work, you should be back on the road in no time.
