Radiator 2-Row Aluminum 5.0 Conversion 1965-1966

CJ's Part Number: RADA23
CJ's Low Price:
$199.99
1508112000 28740
Connect your new radiator to your late model 5.0L engine with these radiator hoses and radiator hose clamps!
CJ's Low Price:
$5.99
Qty
CJ's Low Price:
$5.99
Qty
Earn 199 RPM Points What's this?
Radiator 2-Row Aluminum 5.0 Conversion 1965-1966
Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 Radiator 2-Row Aluminum 5.0 Conversion 1965-1966

Product Description

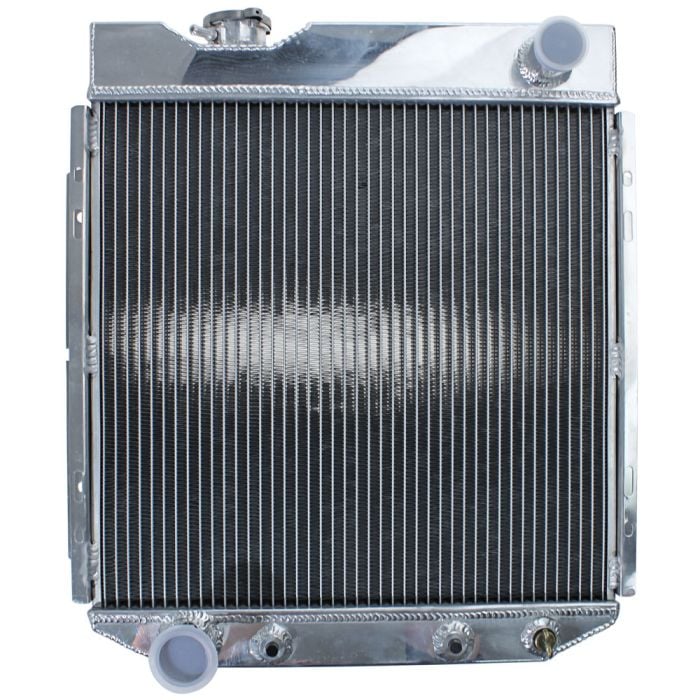

Aluminum 2-Row Radiator for 1965-1966 Mustangs Converting to a 5.0L Engine.

This top-quality aftermarket radiator is a great, lightweight upgrade for your 5.0 conversion Mustang. Aluminum radiators offer better cooling than even a larger copper core radiator. This aluminum radiator will help keep your Mustang cool, even during the hottest of days.

100% tig welded, this radiator features an all-aluminum design, including the tanks and mounting brackets. Includes 12-month manufacturer's warranty.

Includes:
-Transmission cooler
-Billet fill neck
-High performance 16lb cap
-Aluminum tanks & mounting brackets

Features:
-OEM style brass petcock
-2mm thick fittings & tank
-3/8" spaced tubes
-14-16 fins/inch

Dimensions:
-Overall = 21-1/8" x 19-3/4"
-Core = 16-3/8" x 17-1/4"
-Inlet = 1-1/2" (passenger side)
-Outlet = 1-3/4" (driver side)
-Transmission Cooler = 1/8-27NPT

*Inlet and outlet do not fit I6 radiator hoses.

Order this Aluminum 2-Row Radiator for your 1965-1966 Mustang Converting to a 5.0L Engine from CJ Pony Parts today!

Similar Mustang Parts

similar Mustang parts More Mustang Parts

Installation Instructions

Mustang Installation

Mustang Applications

This product will fit the following Mustang years:

Product Reviews

Write a review
Radiator 2-Row Aluminum 5.0 Conversion 1965-1966 is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from exact match Bought and installed this in my '65 Coupe. Perfect fit, great quality, and better look than the original, scratched up radiator it replaced. Nice radiator. Thanks CJ Pony Parts!
Date published: 2015-07-04
Rated 5 out of 5 by from Plug and Play This radiator is a handsome upgrade from the tired and weary stock radiator. Bolts right in to the stock mounts and functions great.
Date published: 2015-10-27
  • y_2017, m_10, d_15, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_RADA23, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cjponyparts
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 10.1ms
  • REVIEWS, PRODUCT

Product Questions

What makes this specific to 5.0 motors? What keeps it from working with any engine with the the inlet and outlet in the right place?

Asked by: MCDRBY
It could be used on an application other than the 5.0 if you need a radiator with the outlets in a certain location, but it is a 2 row radiator and may not provide adequate cooling for some engines.
Answered by: rk cjpp
Date published: 2017-10-06

will this work with a 347ci crate engine? im trying to piece together everything i need to replace the old beat up original motor in the 65GT.

Asked by: 1andonly65GT
I would suggest a three row, http://www.cjponyparts.com/radiator-3-row-aluminum-5-0-conversion-1965-1966/p/RADA24/
Answered by: rk cjpp
Date published: 2017-02-15

Is this radiator compatible with this engine :Ford Racing Crate Engine 306 Cubic Inch 340Hp Ready to Run

Asked by: goldie101212
Yes, that's exactly what this is for.
Answered by: Rick CJs
Date published: 2016-08-04

Will this radaitor work on my 1965 mustang 6 cyl. It looks the same in the picture

Asked by: Norm66
No, the inlet and outlet sizes are too large for the 6 cyl.
Answered by: Rick CJs
Date published: 2016-05-26

I bought this radiator and the overflow ( ROFT14) with it. Is the cap vented? The label says 16lb, so I assume it is a non vented one, right? I order to use the overflow I would need a vented ( also called closed)cap. Which part would fit?

Asked by: bside
Perhaps CJ part # RC6.
Answered by: CJ Pony Parts
Date published: 2015-08-04

Can this be used with a 351w that is in my 65

Asked by: Samdog44
No, it most likely won't - it's meant for late model 5.0L engines.
Answered by: CJ Pony Parts
Date published: 2015-07-28

My water pump bottom connection is on the passenger side. Can I get this radiator with the bottom inlet on the passenger side?

Asked by: MarkW
No, this radiator is only sold as pictured. If you wanted the bottom inlet on the passenger side, you'd have to seek another radiator.
Answered by: CJ Pony Parts
Date published: 2015-07-08

Have a 66 mustang convertable with 6cyl. Standard, need a alluminum radiator

Asked by: Crackers
