Standard Dual Exhaust System 2-1/4" With Black Tri-Y Headers Mustang 289/ 302 1965-1970

CJ's Part Number:
EXK2F
Standard Dual Exhaust Kit 2-1/4" With Black Tri-Y Headers 289/302 1965-1970 is rated 2.5 out of 5 by 2.
  • y_2020, m_7, d_11, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_EXK2F, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cjponyparts
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 166.84ms
  • REVIEWS, PRODUCT

Highlights

  • 16 Gauge Steel Tubing
  • 2 1/4" Turbo Mufflers
  • Includes Exhaust Hangers
  • For 289 or 302 Engines
MSRP $640.64
$474.99
You save 26%

2-1/4" Standard Dual Exhaust System with Black Tri-Y Headers for 1965, 1966, 1967, 1968, 1969 and 1970 Mustangs with a 289 or 302 Engine.

Equip your Mustang with this 2-1/4" Standard Dual Exhaust System. From the engine to the tailpipes, this system includes everything you'll need to get the job done. It's the most complete system we offer, making it more convenient than ever to replace your damaged original. If you're a proud owner of a 1965-1970 Mustang with a 289 or 302 engine, this system is right for you.

Features and Benefits:
- Provides Horsepower Improvements
- Unique Exhaust Tone
- Tri-Y Headers Made of 16 Gauge Steel Tubing
- MIG-Welded Headers

The system includes Pertronix black painted Tri-Y headers. These headers will provide horsepower improvements and great looks for years to come! They are constructed of 16 gauge steel tubing, then miter cut and MIG-welded together for a very unique sound. The primary tubes are 1-1/2", the secondary tubes are 1-3/4" and the collectors are 2-1/2". The tri-Y headers also include 2-1/4" collector reducers, gaskets and hardware.

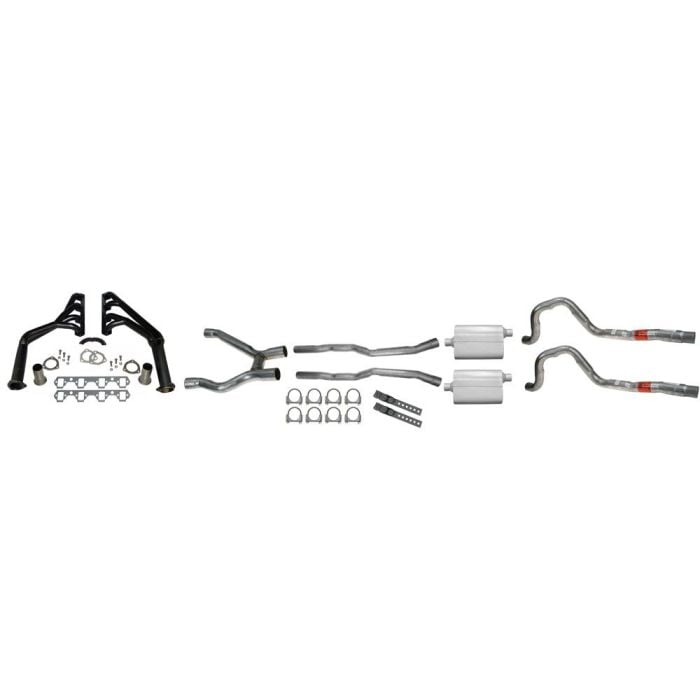

Kit Includes:
- Pertronix Black Tri-Y Headers
- H-Pipe 2-1/4"
- Intermediate Pipes 2-1/4"
- Pair of 2 1/4" Turbo Mufflers
- Tailpipes 2-1/4" (2)
- Exhaust U-clamps 2-1/4" (8)
- Exhaust Hangers (2)

Tech Tip: Power steering equipped cars will need part (SCB) to lower the power steering slave cylinder for clearance.

Additional Notes:
- This exhaust kit will NOT work with staggered shocks.
- Will NOT fit GT-40P heads or AOD transmission.
- Sometimes some small modifications are necessary to the equalizer bar and clutch rods for clearance on manual transmission vehicles.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Mustang years:

Rated 4 out of 5 by from Not ideal for novice, needed welder & enlarger I was expecting a bolt on kit... I ended up having to take it to the shop and have the H pipe ends enlarged to fit the slip on. H clamps didn't seal all around the pipe. I was hearing exhaust leaks. Pretty annoying, so I had it welded. I have it a 4 because it was cheap enough to begin with and the shop charged me $100 to mod. And the other reason is the sound is great. Very deep and classic sounding.
Date published: 2016-06-16
Rated 1 out of 5 by from Terrible fit Got this kit several weeks ago, h-pipe had to be extended, pipes don't line up correctly, hangers won't work on factory body attachment locations, will need to extend buy extensions so pipes clear rear of car. Would have been better off just buying the headers and taking the car to an exhaust shop
Date published: 2015-12-14
  • y_2020, m_7, d_11, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_EXK2F, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cjponyparts
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 7.98ms
  • REVIEWS, PRODUCT

Will any welding be needed to install on a 1965 mustang with a 289?

Asked by: jmock09
Welding is not necessary but someone could weld this in place if they wanted to. This kit is designed to bolt together.
Answered by: Matt CJPP
Date published: 2018-10-17

Is anyone able to download the installation instructions?

Asked by: Eisor007
Installation instructions are not available. If they were there would be a link directly below the installation instructions logo.
Answered by: CJPP Dave
Date published: 2018-02-19

Will this fit a 66 GT with a C4. No power steering.

Asked by: Techrod
This will not work with the GT rear valance.
Answered by: rk cjpp
Date published: 2017-12-13

Hello, Will that fit without modification on my mustang 68 stock no modification 289 no power steering, manuel transmission . I have at the moment the manufacture exhaust system (one exit pipe) Thank you

Asked by: Michel Nantel
Yes.
Answered by: rk cjpp
Date published: 2017-12-08

will this fit a 1968 mustang 289 auto power steering convertible car without modification

Asked by: scotty100
The intermediate pipes may require some modification to fit overt the convertible plate.
Answered by: rk cjpp
Date published: 2017-07-17

Hello, I want to replace the exhaust gas system on my mustang 1966 (289 cu in). I’m not sure about the kit to order : is it the standard Dual Exhaust 2″ or 2-1/4″ ? Thanks in advance & regards

Asked by: Bernard Cuené
It varied. The easiest way to know is to check.
Answered by: CJ Pony Parts
Date published: 2015-08-28
