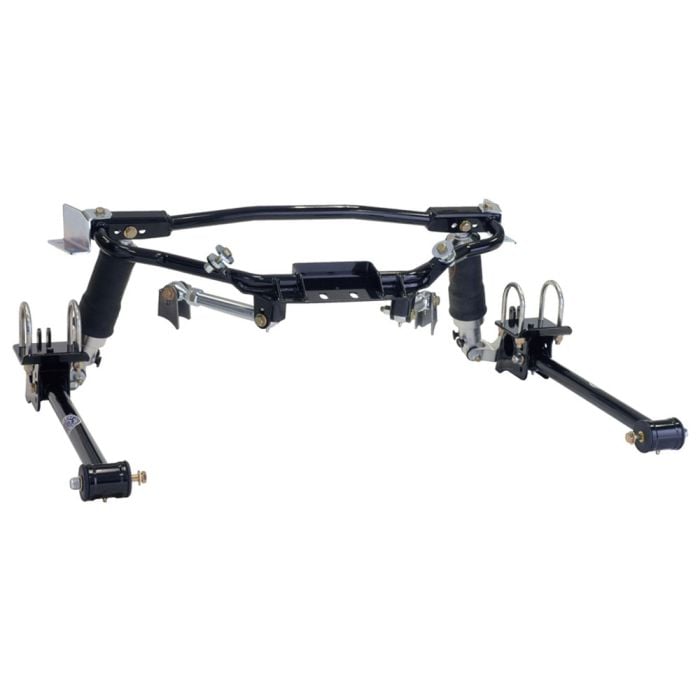

Total Control Products Rear Suspension System With Quickset 1 Air Springs And G-Bars 1967-1970
Total Control Products Rear Suspension System with Single Adjustable Quickset 1 Air Springs and G-Bars for all 1967, 1968, 1969 and 1970 Mustangs.
This Total Control Products Rear Suspension System with Single Adjustable Quickset 1 Air Springs and G-Bars for all 1967-1970 Mustangs, consists of three different combinations of upper and lower link bars and features high quality air-spring shocks. This system can be used with your Mustang’s existing housing which makes for an easy and fast installation of this performance upgrade. If you have a stock rear suspension set up still in place on your 1967, 1968, 1969 or 1970 Mustang, these new Rear Suspension Systems from Total Control Products will blow you away!
- Subframe Cradle
- Adjustable Valve Quickset 1 Air Spring Shocks
- Single Adjustable Upper Control Arms With Polyurethane Bushings
- Bolt-On Lower Control Arms With Polyurethane Bushings
- Self Positioning Installation
- All Necessary Mounting Hardware
Features and Benefits:
- Modern Style Suspension
- Improve Ride Quality And Performance
- Room For Custom Over-Axle Exhaust
- Premium Polyurethane Bushings Cut Down NVH
- Adjustable Suspension Geometry
Now you can adjust the ride height and the handling characteristics of your Mustang with a few quick clicks, thanks to the awesome new Quickset 1 Air Shocks that are a vital part of this G-Bar Suspension System. The patented VariShock QuickSet 1 features a 16-position, positive-click knob that adjusts overall resistance of the shock in both compression and rebound at the same time. When fully deflated, the vehicle rests around 5"-6” below the stock ride height and can be raised to your specific driving height with the simple push of a button. The adjustable valve, air spring shocks are another great feature of this canted 4-bar style suspension system. This G-Bar rear suspension system also features premium polyurethane bushings with grease channels for smooth, quiet operation on street-performance Mustangs. This is an affordable way to get a completely new, fully adjustable g-bar air spring suspension system into your 1967, 1968, 1969 or 1970 Mustang.
This G-Bar suspension system comes with upper and lower control arms with adjustable shock mounts that are fabricated from double shear billet aluminum and bolt directly to the back of the lower control arm bracket. The upper and lower suspension link mounting brackets feature multiple positions so you can adjust for chassis anti-squat and optimize vehicle handling. The upper links are length adjustable to set pinion angle and suspension preload if needed. The three-position upper shock mount provides additional ride height adjustment with the capability to increase stiffness for improved cornering or switch to a softer ride configuration without changing springs!
Total Control’s second generation Rear Suspension System with Single Adjustable Quickset 1 Air Springs and G-Bars fits all 1967-1970 Mustangs’ stock housings and represents the newest advancements in state-of-the-art canted 4-bar suspension design. Air spring equipped systems like this one offer instant ride-height and ride-quality adjustment. With these single-adjustable Varishock air springs working in conjunction with the adjustable control arms and other high quality suspension components, trust us, you’ll want to pick up your own G-bar rear suspension system here at CJ Pony Parts and start enjoying the benefits right away!
Please Note: A compressor system, sold separately, is REQUIRED for proper operation. This Rear Suspension Kit does not include the Rear Axle Housing.
Order this Total Control Products 5801M20-1ML0A Rear Suspension System with Single Adjustable Quickset 1 Air Springs and G-Bars for your 1967, 1968, 1969 or 1970 Mustang today from CJ Pony Parts.
California Residents: Proposition 65 Warning
Advanced skill is required for this installation.
