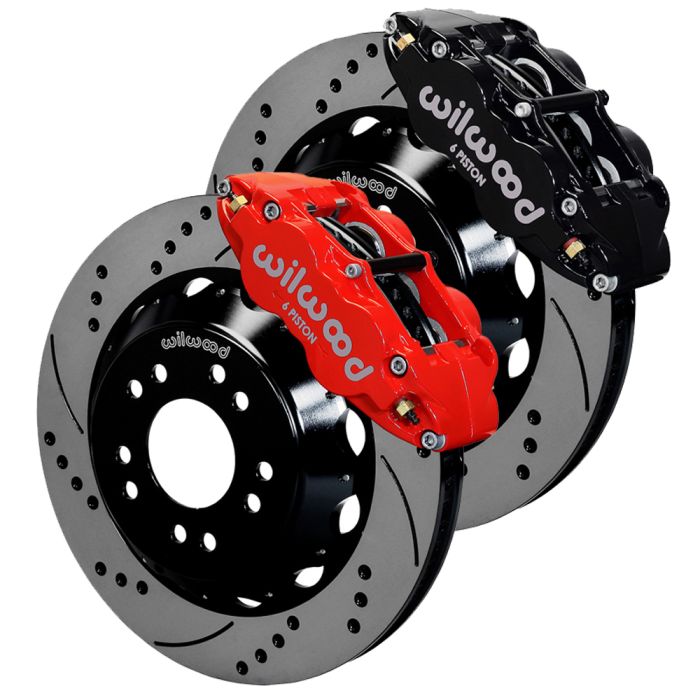

Wilwood Front Big Brake Kit Forged Narrow Superlite 6R With 14” Drilled/Slotted Rotors GM Truck/Chevrolet C10 1963-1987

CJ's Part Number:
DBF256D-V
From
$1,719.99

Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 14” Drilled and Slotted Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 GM Trucks and Chevrolet C10s.

If it's finally time to replace those old, unreliable brakes on your 1963-1987 GM truck, than this Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 14” Drilled and Slotted Rotors (140-15304-D) is exactly what you need! Don't wait and purchase your new kit from CJ Pony Parts now!

Wilwood Big Brake Kit Features:
- Direct-fit upgrade for all 1963-1987 GM trucks
- Provides better braking capability for your front end
- Includes forged narrow superlite 6R calipers in your choice of color
- Perfect for show trucks and high performance street/track applications
- Ideal if you're looking to upgrade to a larger wheel/tire package

This complete brake kit is the perfect way to overhaul the front brakes in your classic Chevy truck! Wilwood includes absolutely everything you'll need to complete your upgrade project, including drilled and slotted rotors, new pads and superior-quality Superlite narrow forged 6R calipers, which come in your choice of either red or black. This new system will provide more comfortable, reliable braking for your vintage truck and it's an ideal option for show or high-performance vehicles. Stop what you're doing and order your all-new upgraded big brake kit from CJ's today!

Kit Component Specs
Calipers:
- Superlite 6R forged narrow
- Available in Black or Red
- Six (6) stainless pistons
- 4.04 square inches of piston area
- Radial mounting style
- Brake pads feature 8.2" of surface area
- Uses brake pad compound BP-10

Rotors:
- 14" diameter
- GT slotted and drilled Spec-37 Iron Ultralite rotors
- 1.25" thick
- Dynamically balanced

Rotor Hats:
- Lightweight aluminum construction
- Black e-coat finish for protection
- 1.38" hat offset
- Dual drilled lug pattern: 5x4.75 and 5x5

Vehicle Fitment Note: Wilwood recommends using an 18" or larger wheel with this 14" front brake kit to ensure proper clearance.

Please Note: This Wilwood Big Brake kit has been specifically designed for use with Wilwoods Prospindles ONLY.

Replacing brakes are a necessity of owning any classic vehicle. However, while they will always wear out, the brakes on your vintage Chevrolet C10 truck don't need to wear out as fast when you install well engineered, high performance braking components. With CJ Pony Parts now offering the latest selection of brakes from Wilwood, you can find these parts at some of the best prices around. Browse around and grab the upgraded Wilwood brake kit your Chevy truck deserves, and place your order with CJ’s today!

Be sure to order this complete Wilwood 140-15304-D Forged Narrow Superlite 6R Front Big Brake Kit with 14” Drilled and Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 GM Truck or Chevrolet C10 today from CJ Pony Parts!

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following C10 years:
