Aeromotive In-Tank Fuel System Kit Triple 450LPH Mustang GT 2011-2017/ Boss 302 2012-2013

Aeromotive:
17356

Highlights

  • Works With Stock Tank
  • Supports 1650-3900HP
  • No Fabrication Required
  • Made in the USA
MSRP $1,588.26
$1,543.99
You save $44.27

Aeromotive Triple 450LPH In-Tank Fuel System Kit for 2011, 2012, 2013, 2014, 2015, 2016 and 2017 GT Mustangs, and 2012-2013 Boss 302 Mustangs.

Want your Mustang to put out four-figure horsepower numbers? Make sure your fuel system is up to the task! This Aeromotive Triple 450LPH In-Tank Fuel System Kit (17356) is a direct drop-in kit for your stock tank, but it supports engine setups with 1650-3900 horsepower, depending on setup.

Features and Benefits:
- Uses patented Aeromotive jet siphon in conjunction with OEM jet siphon pickup
- All internal tank hoses are retained
- System retains all OEM tank venting
- Supports 1650-3900hp depending on setup
- N/A, Forced induction, Gas and E85 Compatible
- Internal jet siphon hose with quick connect attaches directly to Aeromotive jet siphon
- Aeromotive siphon used to transfer fuel at a higher flow rate to pump side of tank
- Outlet cap uses -08 ORB outlet ports for Main Outlet port, Auxiliary Port and Return port
- Two sets of pump terminals in Outlet Cap
- One set to control Main pump and second set to control a second/third pump
- Made in the USA

This is a direct drop-in kit for your OEM tank, with no drilling or fabrication required. This system allows for the use of both OEM sending units (one located in each side of tank). There is a bracket provided on the pump assembly to accept OEM sending unit. The siphon pickup side of tank (driver’s side) is not disturbed.

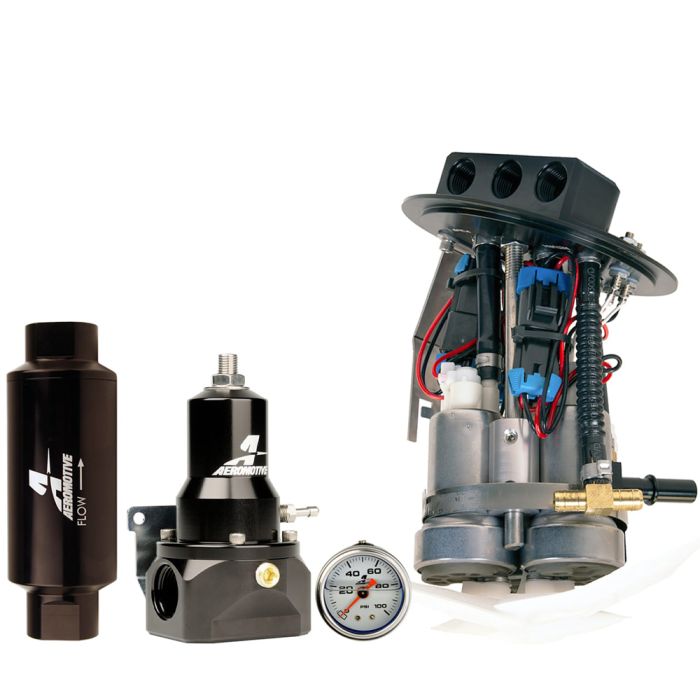

This Kit Includes:
- Aeromotive (18038) Triple 4500lph In-Tank Fuel Pump Assembly
- Aeromotive (15633) Fuel Pressure Gauge - 0-100psi
- Aeromotive (13134) Pro Series EFI Extreme Flow 2-Port Adjustable Fuel Pressure Regulator
- Aeromotive (12341) 10 Micron Microglass ORB-12 Black Fuel Filter

Tech Tip: Outlet cap has a set of terminals that must be connected to OEM sending unit wires.

Please Note:
- Must install quick disconnect electrical connectors on OEM sending unit wires.
- If you wish to purchase it separately, please see P/N: AER18038 for the fuel pump assembly.

Vehicle Fitment:
- 2011-2017 GT Mustang
- 2012-2013 Boss 302 Mustang

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
