Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Cobra Jet Rails Mustang GT 2005-2009

If you’re upgrading your custom 2005-2009 GT Mustang application to hit the strip hard, an aftermarket fueling system is absolutely essential! The Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Cobra Jet Rails is perfect for race performance modded Mustangs, offering the ability to handle over 1,000 horsepower. This Mustang Stealth Fuel System (17306) includes the Aeromotive Stealth A1000 fuel pump which is designed to fit into your stock Mustang tank and successfully integrate with your factory fuel-level sending unit and a jet-siphon transfer pump.

Features and Benefits:
- Handles Over 1,000 Horsepower
- Stock Fuel Tank Compatibility
- Includes Aeromotive’s HD Fuel Pump Wiring Kit
- High-Flow ORB Port Fittings
- High-Flow Filter
- One-Piece CNC Y-Block
- Billet Fuel Rails
- Made in the USA

Assembled to completion, you'll receive a Stealth In-Tank Fuel Pump, a 40-micron High Flow Filter, a One-Piece CNC Y-block, Billet High-Flow Fuel Rails, a Billet EFI Pressure Regulator and all the necessary Aeromotive high flow ORB Port Fittings. The Fuel Pump Electrical Supply is also provided, including an HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. The obvious choice to find success in your race ventures, this kit is an opportunity you don't want to miss, and will give you the edge to dominate the strip with ease!

Additional Notes:
- Fuel Lines and Hose-Ends Sold Separately
- For Continuous Duty/Street Applications, please see P/N: AER17307.

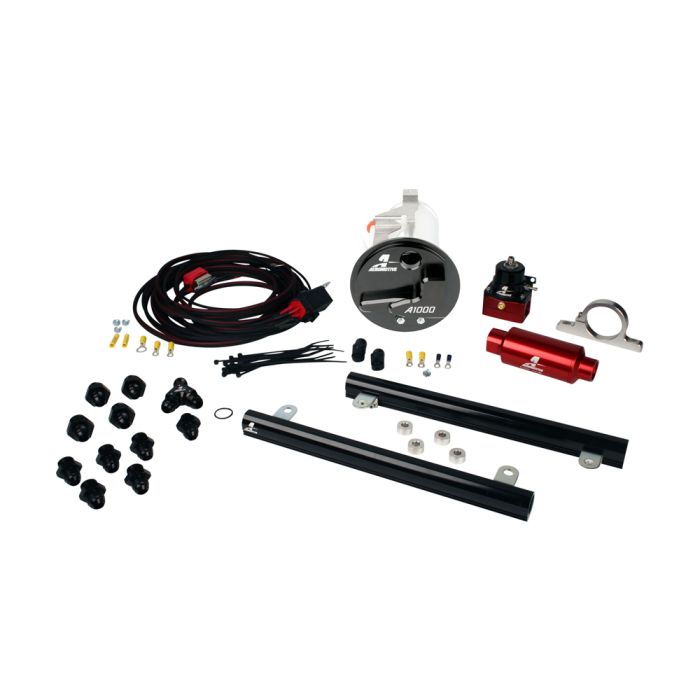

This Kit Contains:
- (1) Set of 5.4L Cobra Jet Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Wiring Kit
- (1) Filter Bracket
- (1) 40-micron Filter Assembly
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.
