Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Rails GT 2005-2009



  • Comprehensive Kit
  • Supports 1000+ Horsepower
  • High Performance Fuel Delivery
  • Great For Race Use
MSRP $2,151.05
You save 7%

Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Rails for 2005, 2006, 2007, 2008 and 2009 GT Mustangs.

If you're building your S197 to race, you need a race-ready fuel system! This Mustang Stealth Fuel System (17304) includes the Aeromotive Stealth A1000 fuel pump, which integrates with your stock Mustang tank, fuel-level sending unit, and jet-siphon transfer pump. It can handle over 1,000 horsepower for your track performance needs.

Features and Benefits:
- For 2005-2009 Mustang GT’s with engine swap to 5.4L GT500 Supercharged 4V engine and/or equivalent intake.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty, racing applications.
- Made in the USA

Aeromotive provides all the fuel system hard-parts you’ll need, including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including an HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving.

Please Note:
- Fuel Lines and Hose-Ends Sold Separately
- For Continuous Duty/Street Applications, please see P/N: AER17305.

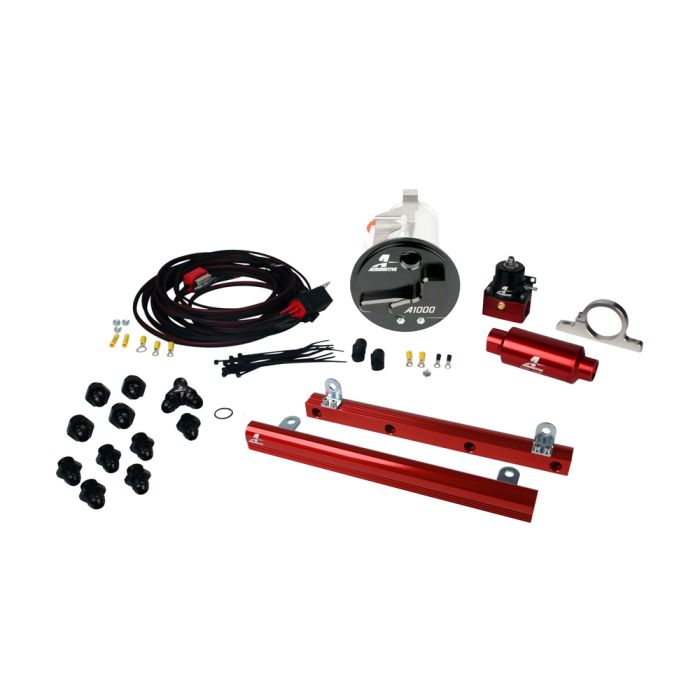

This Kit Contains:
- (1) Set of 5.4L GT500 Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Wiring Kit
- (1) Filter Bracket
- (1) 40-micron Filter Assembly
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty


Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
