Lokar Transmission Dipstick Push-In Stainless Firewall Mount Case Fill C4

CJ's Part Number:
From $108.95

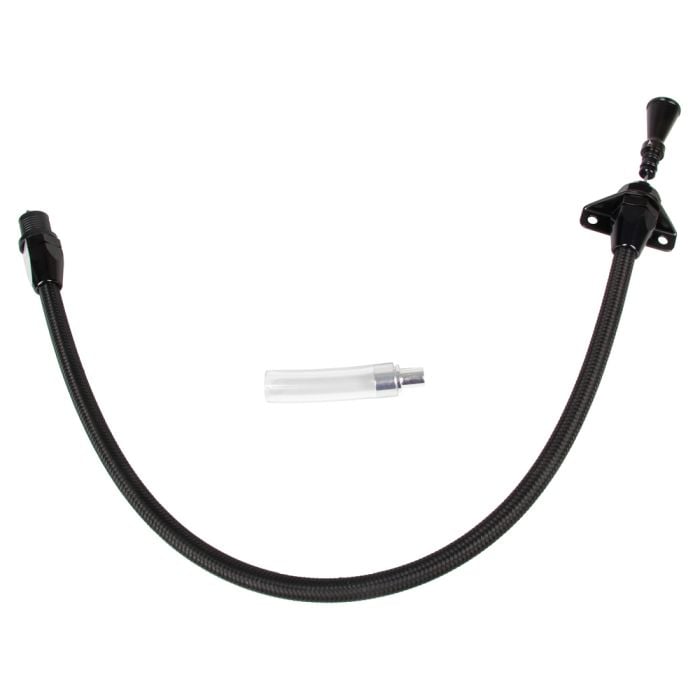

Lokar Firewall Mounted Stainless Push-In Dipstick for all Mustangs with a Case Fill C4 Automatic Transmission.

These great new transmission dipsticks from Lokar are Teflon lined and are available now here at CJ Pony Parts. These Lokar Firewall Mounted Stainless Dipsticks for all Mustangs with a Case Fill C4 Automatic Transmission are great upgrades or replacements for old, damaged or missing ones. The outer housing is constructed from braided stainless steel and the flexible inner dipstick measuring cable is heat-resistant and has easy to read, molded markings at the appropriate transmission fluid levels.

- Flexible, Teflon-Lined Dipstick
- Correct, Molded Fluid Level Markings
- 24” Push-In Dipstick
- Braided Stainless Outer Housing
- Brushed Billet Aluminum Handle and Fittings
- Dipstick Funnel Adapter Included
- Seals with Double O-Rings
- Designed for Case Fill C4 Automatic Transmissions
- Complete Installation Instructions Included

Available Finishes:
- Midnight Series (Black)
- Silver

The Midnight Series finish is nearly entirely black, save for the the bottom part that pushes in to the trans case and provides a sleek, shimmer to your engine bay. The Silver finish is entirely composed of brushed billet and stainless steel, so it is flashy and adds pop!

This transmission tube is a firewall mount style and is the most versatile type. This is recommended to use when there is little room to spare in the engine compartment as it can be mounted on the firewall or anywhere else in the engine compartment you desire, or wherever you can fit it. Route the 24” dipstick tube assembly to the desired mounting spot and install the mounting bracket using two screws of your choice. This push-in style dipstick requires just a slight lubrication of the o-rings and then it slides into the opening on the transmission case easily. This style dipstick only works with a case fill C4 automatic transmission.

For the Ford C4 case fill transmissions, the dipstick tube assembly must be positioned so that the longest flat side of the transmission tube fitting is towards the transmission case in order for it to be installed properly. This Lokar Firewall Mounted Stainless Dipstick for all Mustangs with a Case Fill C4 Automatic Transmission comes with a dipstick funnel adapter and complete installation instructions as well.

With the braided stainless steel outer housing and attractive brushed billet aluminum handle and fittings, this dipstick and housing make an attractive, striking addition to pick up from CJ Pony Parts today. Make your engine bay really pop and grab the attention of any jealous onlooker’s wanting eyes!

* This style dipstick ONLY works with a case fill C4 automatic transmission.
* Make sure the dipstick tube assembly is NOT touching the exhaust at any point!

Please Note: Firewall mount dipsticks will need two mounting screws that are NOT included.

Installation Difficulty


Novice skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
