Maximum Motorsports Roll Bar Street 4-Point Without Door Bars/Harness Mount Convertible 2005-2014

Maximum Motorsports:
MM5RB-22.1
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 118.2ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • 1-3/4" Diameter Tubing
  • 0.134" Wall Dom Tube
  • 6" X 6" Mounting Pads
  • Made In The USA
$727.00

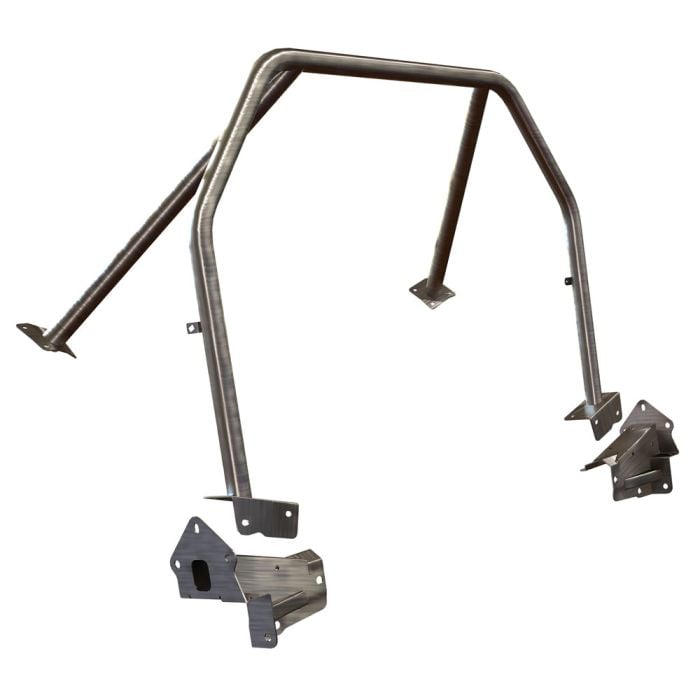

Maximum Motorsports 4-Point Street Roll Bar without Door Bars or a Harness Mount for all 2005-2014 Mustang Convertibles.

Increase both safety and the rigidity of your Mustang's chassis with a Maximum Motorsports Street Roll Bar. The Street roll bar offers rollover protection and easy access to the rear seat.

Maximum Motorsports manufactures all their Roll Bars from the highest quality materials and hardware. Made of 1-3/4" diameter by 0.134" wall DOM tube (much stronger than the more commonly used 0.120" wall ERW seamed tubing). Contour-hugging 6" x 6" mounting pads with backup plates sandwich the unibody for safe and strong mounting. All hardware is Grade 5 or higher. Maximum Motorsports roll bars are designed to fit with your stock Mustang interior.

All of Maximum Motorsports roll bars are uncoated, bare steel. For a high quality finish, the installer should paint or powder coat the roll bar as part of the installation. Roll bars should have padding wherever any part of an occupant's body may come into contact with the steel tubing. This includes hands, feet, arms, and legs, not just the occupants' heads.

*This roll bar does NOT conform to NHRA and NMRA rules.
*Bolts to the chassis; no welding inside the car.
*Roll bars in convertibles will not accommodate a light bar.
*Convertible tonneau covers will not fit after a roll bar installation.

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Installation Videos

Vehicle Fitment

This product will fit the following Mustang years:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.87ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

does the 4 point roll bars allow convertible tops to close and do they meet SCCA specifications

Asked by: bhamm11
It will allow the convertible top to close. Not sure if it meets scca specs, it does NOT conform to NHRA and NMRA rules.
Answered by: rk cjpp
Date published: 2018-11-16

Do you have a video for the four point roll bar installation for 2012 Mustang convertible? Cheers

Asked by: waigok
Yes, the video is located on the parts page.
Answered by: rk cjpp
Date published: 2018-07-26

Maximum Motorsports Roll Bar Street 4-Point Without Door Bars/Harness Mount Convertible 2005-2014. Will this will fit a 2014 ford mustang 6cyl base convertible?   Also will this fit a 1998 ford mustang convertible 6cyl base?

Asked by: sfknese
It will fit your 2014 convertible without issue. It won't fit the 1998.
Answered by: CJ Pony Parts
Date published: 2017-01-27

I Need this bar NHRA legal with removable door bars and rear cross seat belt bar, just looks like they can add this But don't list it

Asked by: boss434
This is the one you want to be NHRA legal: http://www.cjponyparts.com/maximum-motorsports-roll-bar-drag-race-6-point-with-e-z-remove-door-bars-fixed-harness-mount-coupe-2005-2013/p/ROLL24/
Answered by: CJ Pony Parts
Date published: 2017-03-03

I want to start taking my 05 mustang GT convertible to the track. will this fit in a convertible?

Asked by: Alex23
It'll fit.
Answered by: CJ Pony Parts
Date published: 2015-05-28
