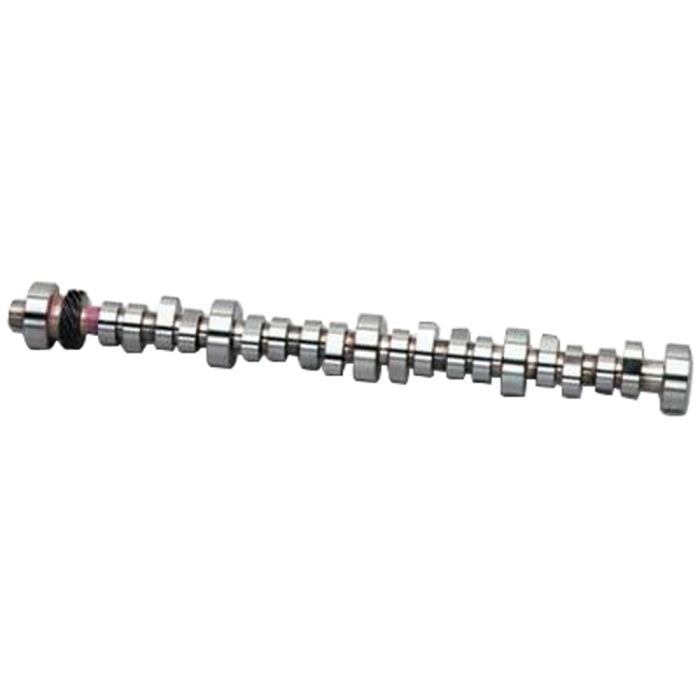

Trick Flow Camshaft Track Max Hydraulic Roller .595/.595 3400-7000 RPM 5.0L 1985-1995

Trick Flow: TFS-51403005
CJ's Low Price:
$299.99
1508284800 46229
Earn 299 RPM Points What's this?
Trick Flow Camshaft Track Max Hydraulic Roller .595/.595 3400-7000 RPM 5.0L 1985-1995
Trick Flow

Product Description

Trick Flow Track Max Hydraulic Roller Camshaft with .595/.595 Lift and a 3400 to 7000 RPM Range for 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 and 1995 Mustangs with a 5.0L Engine.

Specifically designed to match the power characteristics of Trick Flow cylinder heads, these Track Max cams for 5.0L Ford engines offer state-of-the-art power at an affordable price. Starting as premium blank cores, the cams are checked for the proper hardness and then precision-ground to exacting tolerances. Instead of creating a steep, narrow powerband that falls off very quickly, the camshaft's powerband achieves maximum area under the curves of the Twisted Wedge heads.

Ford 5.0L Trick Flow Track Max Hydraulic Roller Camshafts are designed and dyno tested to ensure maximum performance.

This race camshaft delivers a rough a idle and a 3,400-7,000 rpm powerband. A minimum compression of 10:1 is required as well as a calibrated mass airflow meter. A 3,000-3,500 rpm stall converter and 3.90-4.11 gears are recommended.

Trick Flow Track Max Camshaft Specifications:
- Cam Style: Hydraulic roller tappet
- Basic Operating RPM Range: 3,000-7,000
- Intake Duration at 050 inch Lift: 250
- Exhaust Duration at 050 inch Lift: 254
- Duration at 050 inch Lift: 250 intake/254 exhaust
- Advertised Intake Duration: 312
- Advertised Exhaust Duration: 316
- Advertised Duration: 312 intake/316 exhaust
- Intake Valve Lift with Factory Rocker Arm Ratio: 0.595 inch
- Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.595 inch
- Valve Lift with Factory Rocker Arm Ratio: 0.595 intake/0.595 exhaust
- Lobe Separation (degrees): 110
- Computer-Controlled Compatible: No
- Valve Springs Required: Yes
- Compression: 10:1 minimum
- Quantity: Sold individually

*Calibrated mass airflow meter required.
*Minimum 10:1 compression required.
*3,000-3,500 RPM stall converter and 3.90-4.11 gears recommended.


Installation Instructions

Mustang Installation

Mustang Applications

This product will fit the following Mustang years:
