Wilwood Front Brake Kit Forged Superlite 4R Big Anodized 12" Slotted Rotors 2005-2014

Wilwood:
140-12508

Highlights

  • Sanction Racing Compliant
  • Minimized Rotating Weight
  • Stainless Steel Flexlines
  • Made in the USA
MSRP $1,988.00
$1,775.00
You save 11%

Wilwood Forged Superlite 4R Big Anodized Front Brake Kit With 12" Slotted Rotors For 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014 Mustangs.

Dedicated S197 owners can now take the Wilwood Forged Superlite 4R Big Anodized Front Brake Kit with 12" Slotted Rotors and configure their 2005-2014 Mustang with Thermlock pistons and springs strengthen their braking power. The enlarged power brake booster and slotted rotors are made for those strip speeds!

Features:
- Fits 2005-2014 Mustangs
- Anodized Gray 4-Piston Front Calipers
- 12.19-inch Slotted Rotors
- Aluminum Rotor Hat
- Several Race Applications
- Race Compliant (SCCA American Sedan)
- Made in the USA
- Bolt-On installation

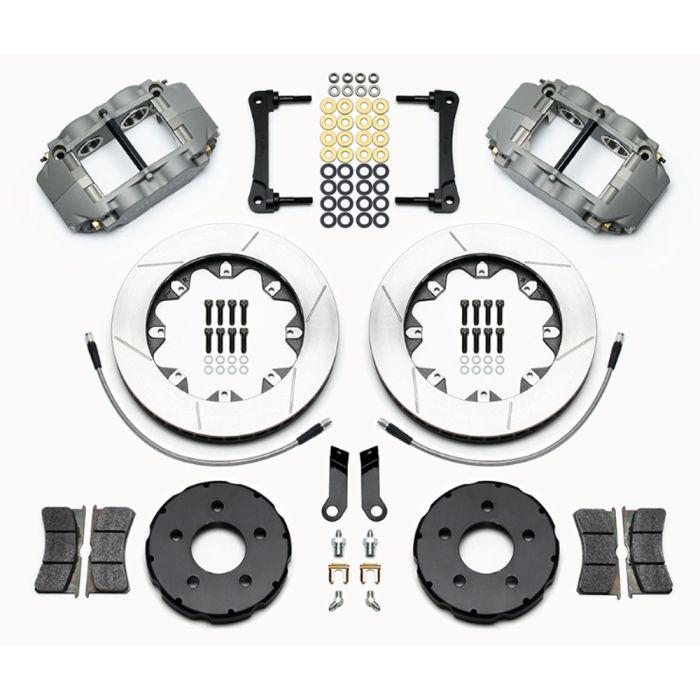

This kit is configured for dedicated road racing on all 2005-2014 Mustangs. Included are four-piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock pistons and internal knock-back damping springs. These calipers, pistons, and damping springs are volume matched for system compatibility with either a factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders.

In compliance with SCCA American Sedan rules, the kit includes two-piece 12.19-inch diameter Spec 37 alloy GT series directional vane rotors, crossovers into the NASA pony car categories, or any other sanction racing with 16-inch or 17-inch wheels. The unsprung and rotating weight is minimized by mounting the rotors to the OE hubs with forged aluminum hats. Each kit includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flex lines, and all premium grade hardware.

Specifications:

- Spindle Type: Factory Disc Spindle
- Mount Type: Radial
- Caliper Type: 4-Piston Caliper
- Rotor Diameter: 12.19-inch
- Minimum Wheel Diameter Required: 16-inch

California Residents: Proposition 65 Warning

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
